Norsonic NorReview Noise Analysis Software

SKU: Nor1026

Overview

  • Flexible and versatile user-interface
  • Evaluation of industrial, road, and rail noise
  • Evaluation of multiple measurement files simultaneously
  • Direct import or file read-in from Norsonic instruments

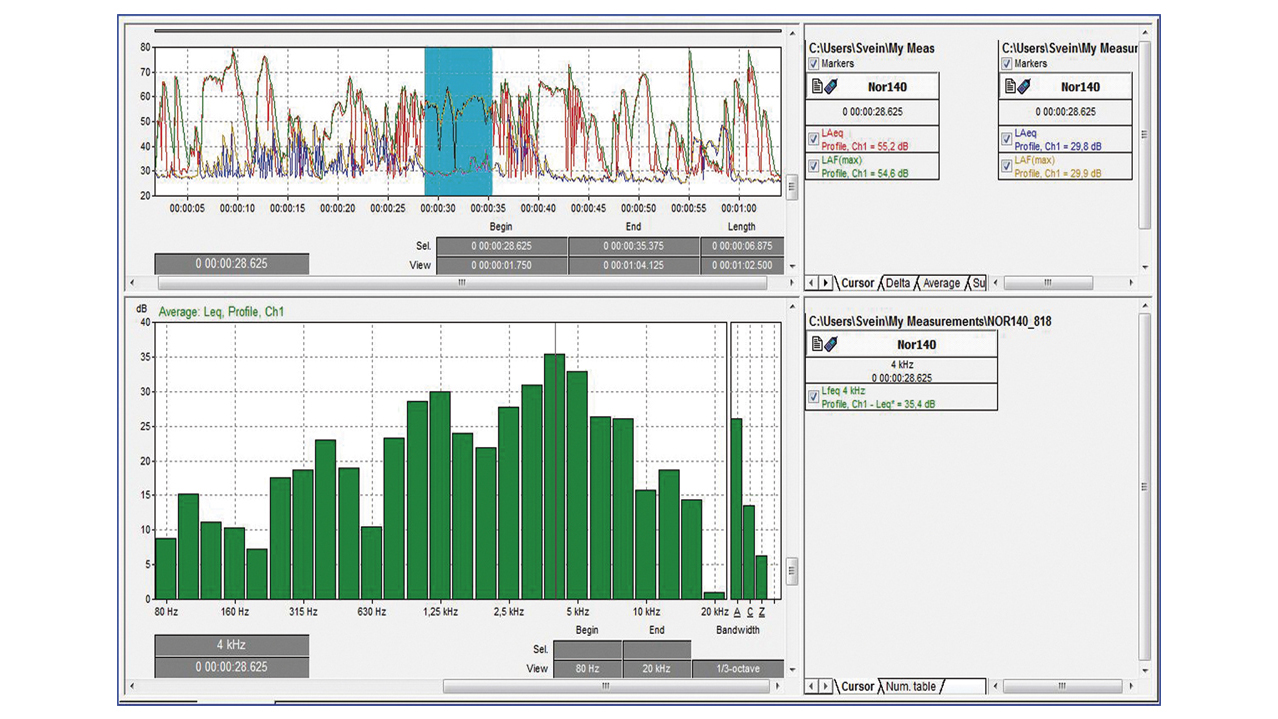

  • Displays frequency, time-profile, FFT and AC views of the measurement data
  • Insert and edit markers to recognize noise sources
  • Replay of audio recordings with dynamic cursor and marker insert features
  • Post process event analysis with marker insert feature, and calculations on selected pre-marked sections
  • Rating calculations according to most up to date national standards
  • Pre-defined project reports
  • L(t) view of calculated functions
  • L(f) view difference calculations
  • User-defined project reports
  • Supports weather data
  • Excel template based NorReport measurement report feature

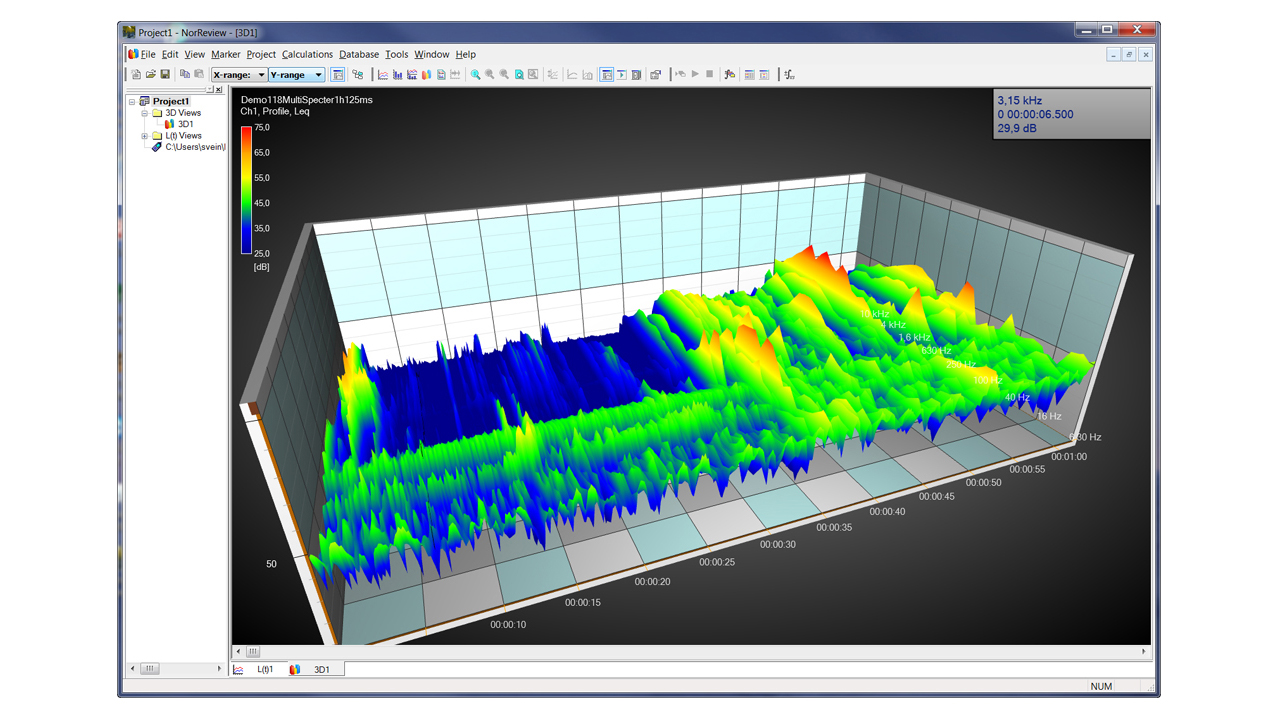

  • Sophisticated 3D and Spectrogram views
  • Automated multi-views of long-term measurements in pre-selected detailed sub-periods (24 x 1-hour views of a 24h measurement)
  • Overlay marker
  • Simultaneously transfer of all views to MS Word

Options

Professional Event and Calculation module for automated noise sources event detection, marker management feature and advanced calculations based on selected markers, time intervals, or descriptors, as well as post-processed statistical noise analysis.

Enhanced display module with level vs. frequency presentation of multi spectrum measurements, 3D/Spectrogram Views (require v6.x software), AC-view display of audio recordings and a secondary y-axis on the L(t)-Views for display of alternative data such as weather.

Multiple files module for displaying and calculating of multiple noise measurements files in parallel, even from multiple instruments. Allows the read-in of .txt files for measurement parameters as well as alternative data files such as pictures, NorReview projects and other .doc and .pdf documents

NorReview audio player with moving cursor along the level versus time graphical views measurement recordings. Combined with Opt.1, new markers may be inserted simultaneously with the moving cursor.

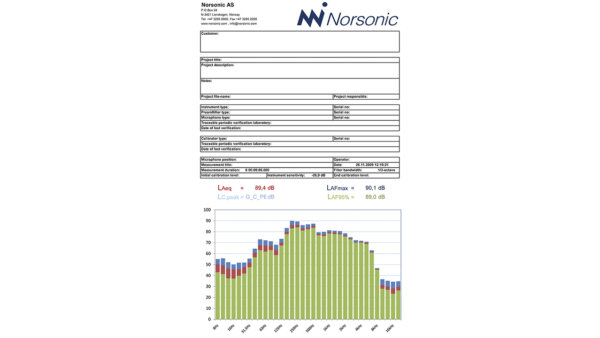

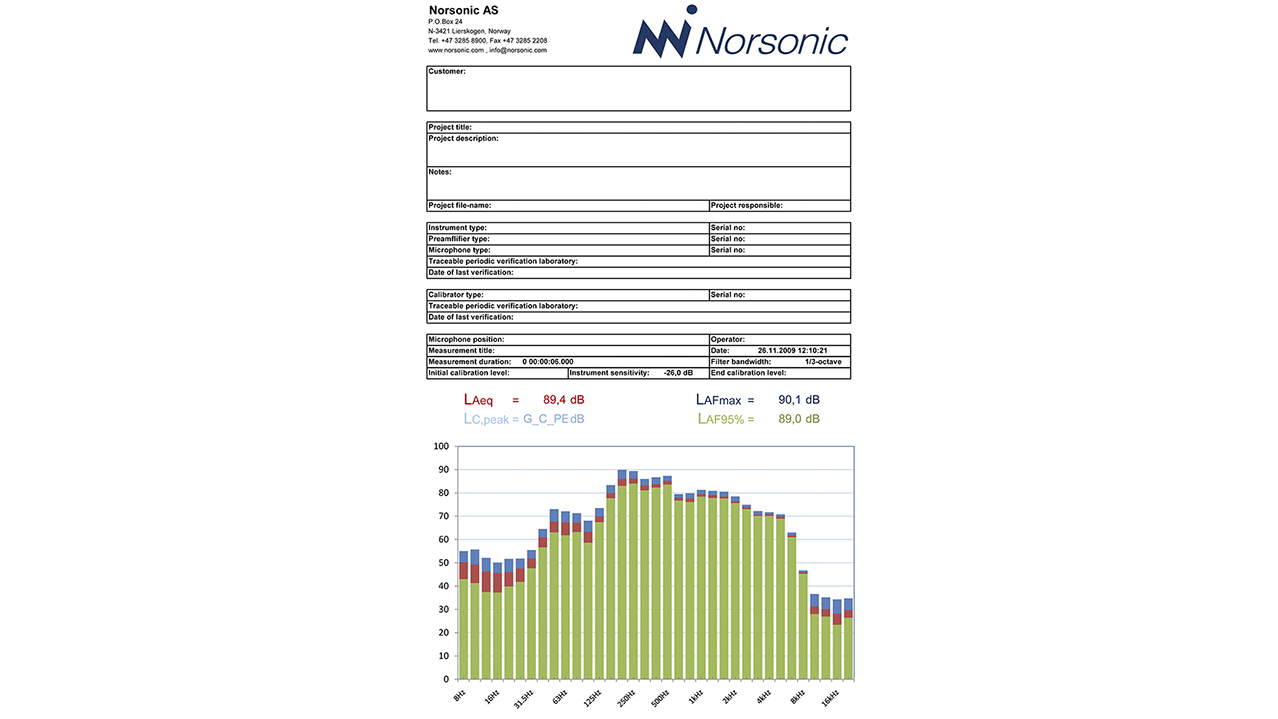

NorReport module uses editable Excel-templates to prepare user-defined printed report of measurement result. Based on predefined Word templates, the user may quickly produce a complete report of any measurement file imported to the project tree. The templates may be adjusted to each user’s requirement by deleting or inserting those graphs and tables required. Company logos or other graphical objects may also be added; or templates may be stored for re-use in a later project.Requires Microsoft Word2003, or newer, installed on the PC. (This optional feature is included in the basic package from software version 5.x)

Rating module enabling calculations according to Lden (Day-Evening-Night) and Ldn (Day-Night) functions (ISO 1996-1 Standard).

Tonality assessment module enabling calculations according to Annex C in the ISO 1996-2 (2007) and the German Standard DIN 45681 (2005).

Rating module enabling calculations according to German Standard TALärm (1998).

Rating module enabling calculations according to Italian Standard DM 16.03.98 based on the level vs. time profile.

Prominence of impulsive sounds in accordance with British Standard BS-4142 (2014) Annex E (similar to Nordtest Method NT ACOU 112).

Option Packages

  • Nor1026 Plus Option Kit contains basic module plus options 2,3, and 4
  • Nor1026 Standard Option Kit contains basic module plus options 1,2,3, and 4
  • Nor1026 Professional Option Kit contains basic module plus options 1,2,3,4, Lden, TALärm, and DM160398.

Norsonic NorReview Noise Analysis Software

SKU: Nor1026

NorReview is a software package for presenting and post-processing environmental noise data from Norsonic instruments.
