Rion AS-70 Waveform Analysis Software

SKU: AS-70

About

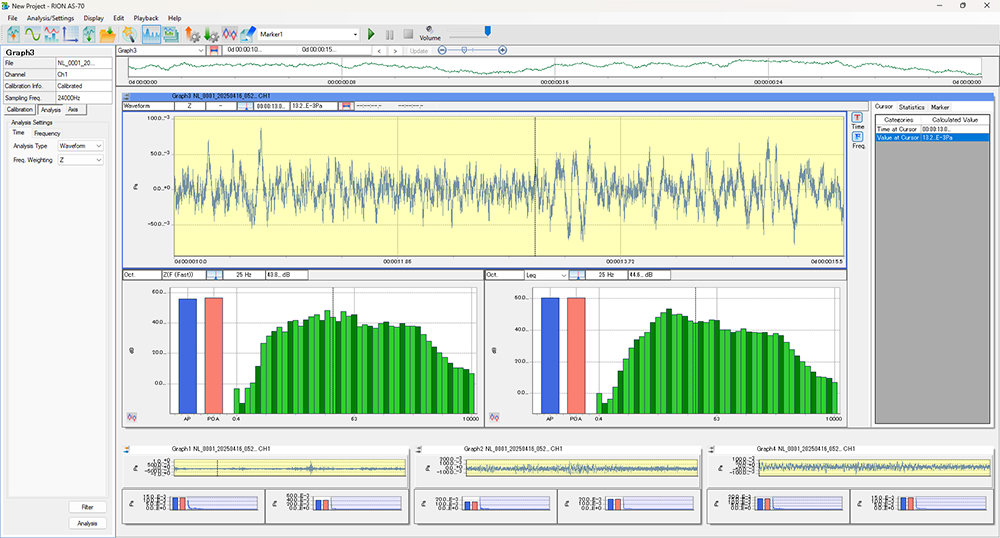

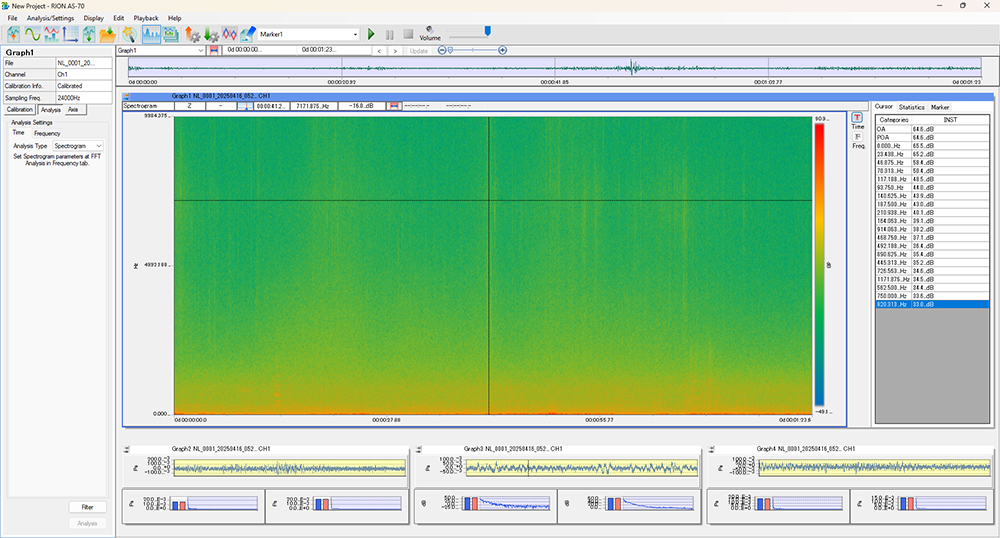

The AS-70 is waveform analysis software developed by RION for viewing and processing WAVE files related to sound and vibration measurements. It delivers fast, accurate, and simultaneous analysis of multiple files, displaying amplitude and level waveforms, spectrograms, power spectra, and density graphs.

The AS-70 supports the import of WAVE files recorded by RION sound level meters, vibration meters, and data recorders, as well as general WAV. files recorded by other instruments. The software provides tools for data visualization, frequency analysis (FFT and octave bands), and statistical calculations. Results can be graphed and statistical values computed for defined time intervals. Outputs can be viewed in list format and exported as text or WAVE files.

The software is provided both as a free viewer version and as a HASP USB dongle licensed version.

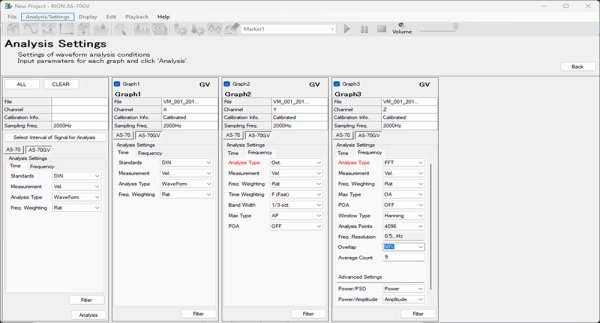

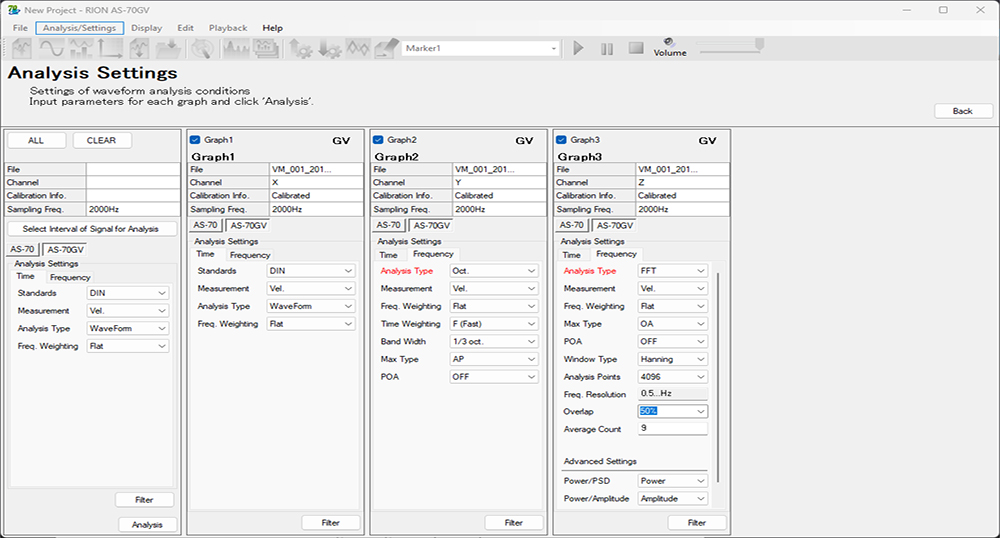

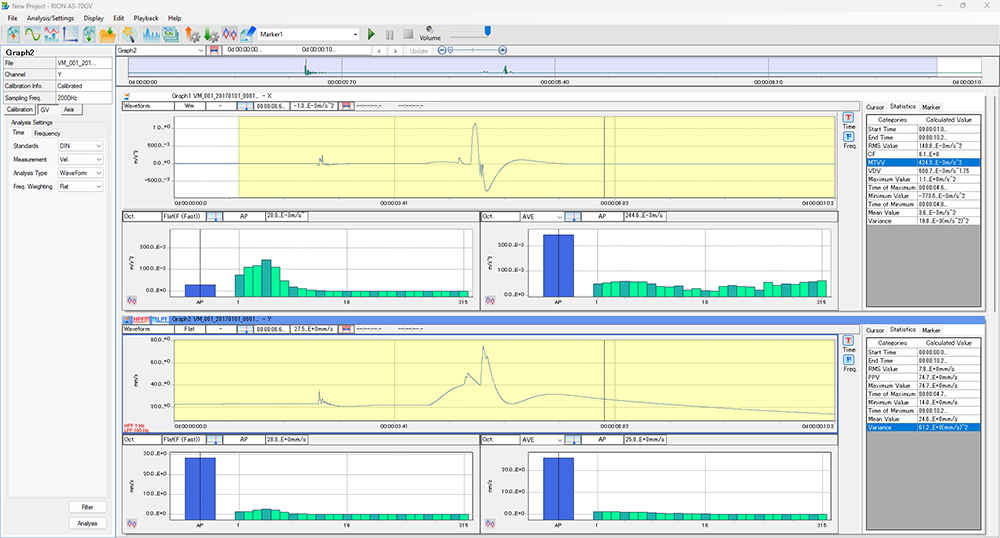

An AS-70GV version is available for waveform analysis of ground-borne vibrations recorded by RION VM-56 equipped with the VX-56WR option. In addition to vibration analysis according to DIN, ISO, and SBR standards, this version also includes all features of the AS-70 analysis software, but only for wave files recorded with the VM-56.

Features

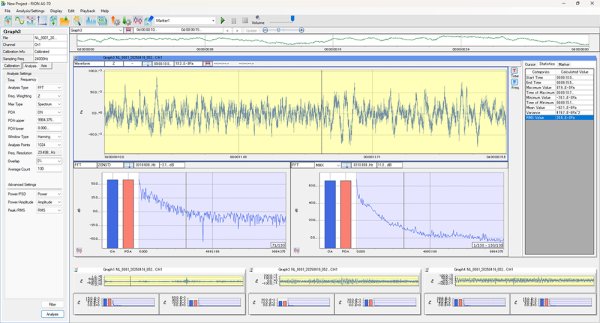

  • FFT (Fast Fourier Transform)

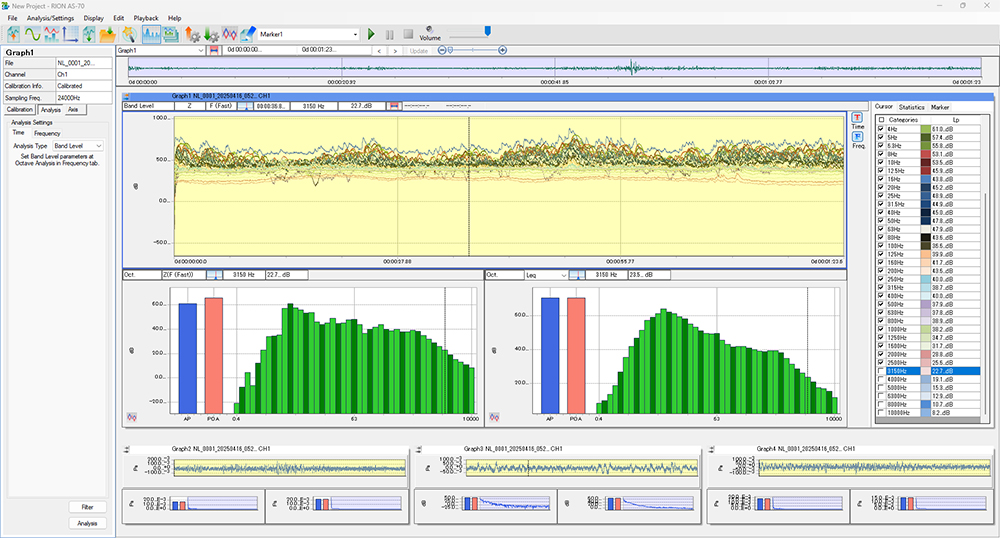

  • 1/1 and 1/3 Octave Band analysis
  • Time and frequency domain analysis
  • Real-time statistical processing (Leq, Lmax, Lmin, etc.)
  • Digital volume control for playback of low-level recordings
  • Sampling Frequencies (Hz): 64k/51.2k/48k/32k/25.6k/24k/16k/12.8k/5.12k/2.56k/2.4k/
    1.28k/1.2k/1k/512/256/240
  • Bit depth: 16 bit/24 bit
  • High-pass and low-pass filters
  • Real sound playback
  • Markers on waveform data with optional comments
  • Tonal audibility per ISO 1996-2

Rion AS-70 Waveform Analysis Software

SKU: AS-70

Waveform analysis software for viewing and processing WAVE files related to sound and vibration measurements.
