Rion DA-21 4-Channel Data Recorder

SKU: DA-21

Compact 4-channel data recorder for sound and vibration measurements.

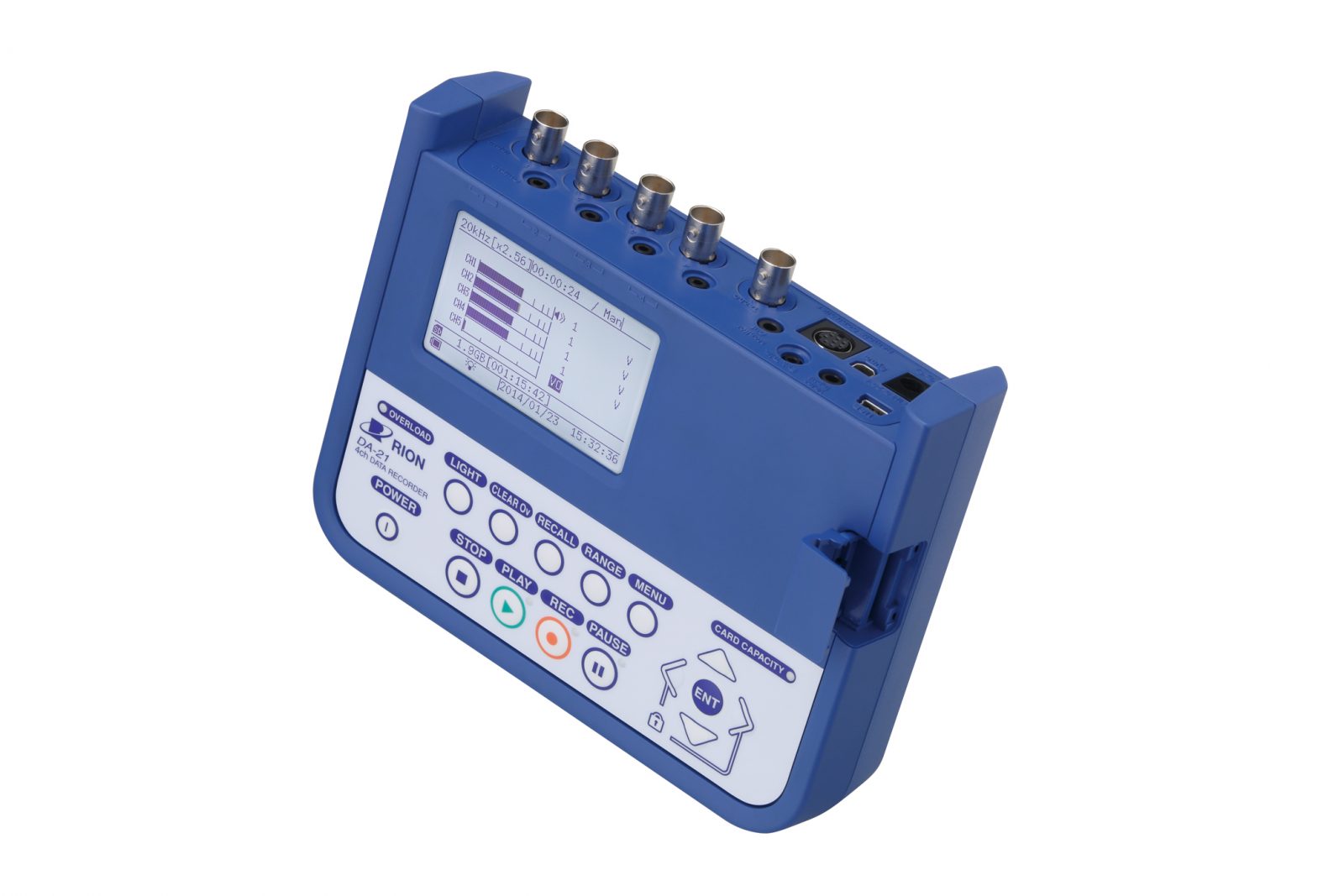

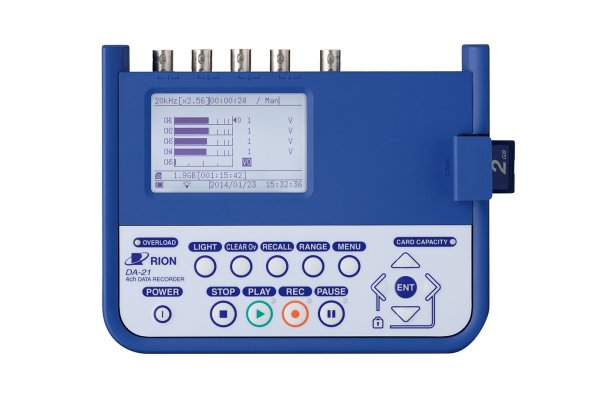

The DA-21 is a compact, 4-channel data recorder designed to offer a lightweight, high-quality solution for recording a wide range of electronic signals and waveform data during on-site measurements of sound and vibration.

DA-21 Banner

Compact 4-channel data
recorder for sound and
vibration measurements

The DA-21 is a compact, 4-channel data recorder designed to offer a lightweight, high-quality solution for recording a wide range of electronic signals and waveform data during on-site measurements of sound and vibration.

What's Included

The DA-21 is a compact, 4-channel data recorder designed to offer a lightweight, high-quality solution for recording a wide range of electronic signals and waveform data during on-site measurements of sound and vibration.

Recorded data is saved in WAVE format on an SD card, and the stored data can be output as analog signals or exported for further analysis with external signal processing equipment. Two DA-21 units can be synchronized to create an 8-channel recording system. The recorder also features a voice memo function and operates silently, as it contains no moving parts. It is designed to perform reliably even in challenging environments with exposure to vibration and humidity. Additionally, it includes a dedicated rotary pulse (tachometer) input, supporting speeds from 200 to 600,000 RPM.

Waveform data can be reviewed using the bundled viewer version of the Waveform Analysis Software AS-70, or further analyzed using the full-featured advanced version of the AS-70 software.

Each DA-21 includes:

  • AS-70 Viewer Software
  • Size AA alkaline battery (x4)
  • 18-Month Warranty

Applications

  • Automotive Sound & Vibration
  • Railway Noise and Vibration
  • Industrial Machinery Vibration
  • Low Noise and Vibration Measurements
  • Product Noise Testing

Features

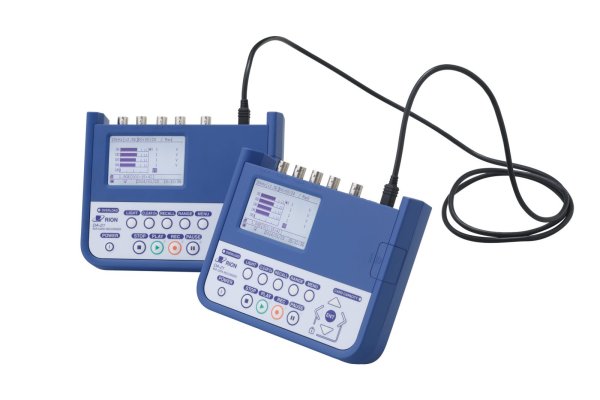

  • 4 channels of sound and/or vibration (8 if two DA-21s linked with CC-43 cable)
  • Industry standard calibrated wav files recorded onto SD card

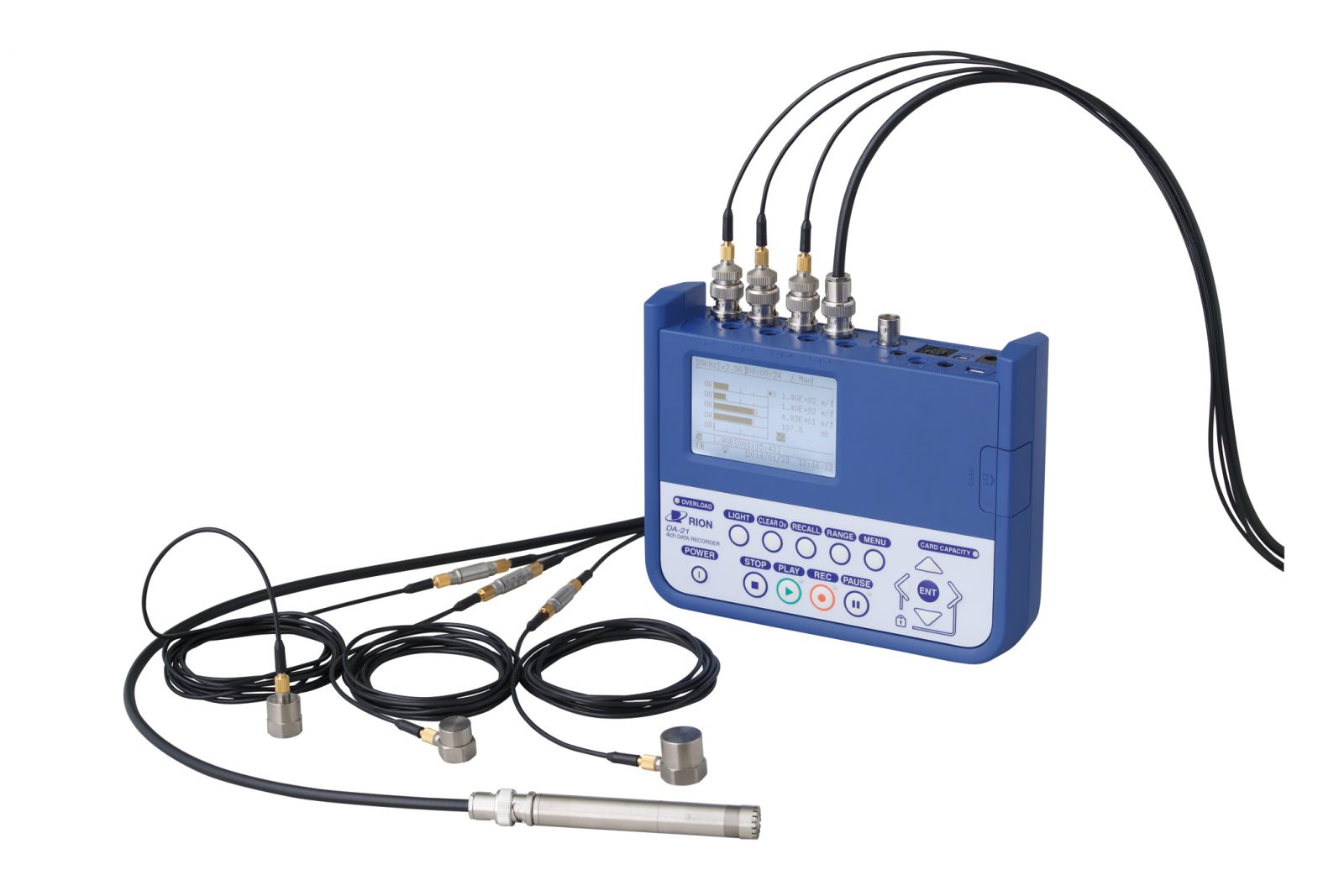

  • CCLD microphone and/or accelerometer input
  • Analogue signal input (max 13V)
  • Portable <0.5 kg, 140 (h) x 175 (W) x 45 (D) mm
  • Selectable sampling rate and bit depth
  • Selectable (including OFF) high and low pass filters
  • Frequency Range d.c. – 20 kHz
  • Separate tacho input (200 – 600, 000 r.p.m.)
