Rion RIONOTE Portable Multi-Function Measurement System

SKU: RIONOTE

Portable multi-channel sound and vibration analyzer

The RIONOTE is a portable multi-channel sound and vibration analyzer with waveform recording, FFT analysis, and 1/1 and 1/3 octave band analysis functionality. Featuring a large color touch screen, the RIONOTE becomes and intuitive, portable and a multi-functional measurement and analysis device.

Portable multi-channel sound
and vibration analyzer

The RIONOTE is a portable multi-channel sound and vibration analyzer with waveform recording, FFT analysis, and 1/1 and 1/3 octave band analysis functionality. Featuring a large color touch screen, the RIONOTE becomes and intuitive, portable and a multi-functional measurement and analysis device.

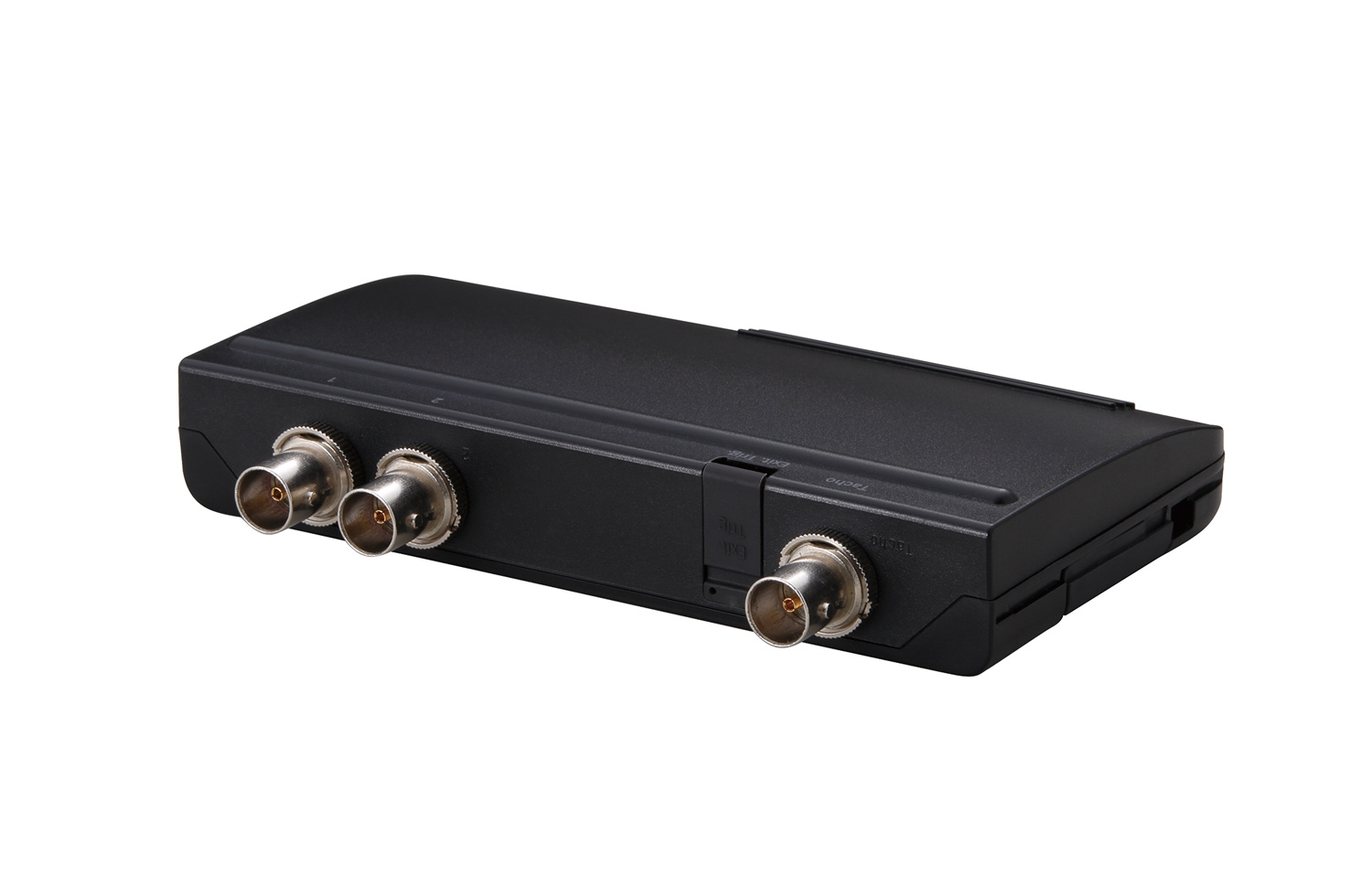

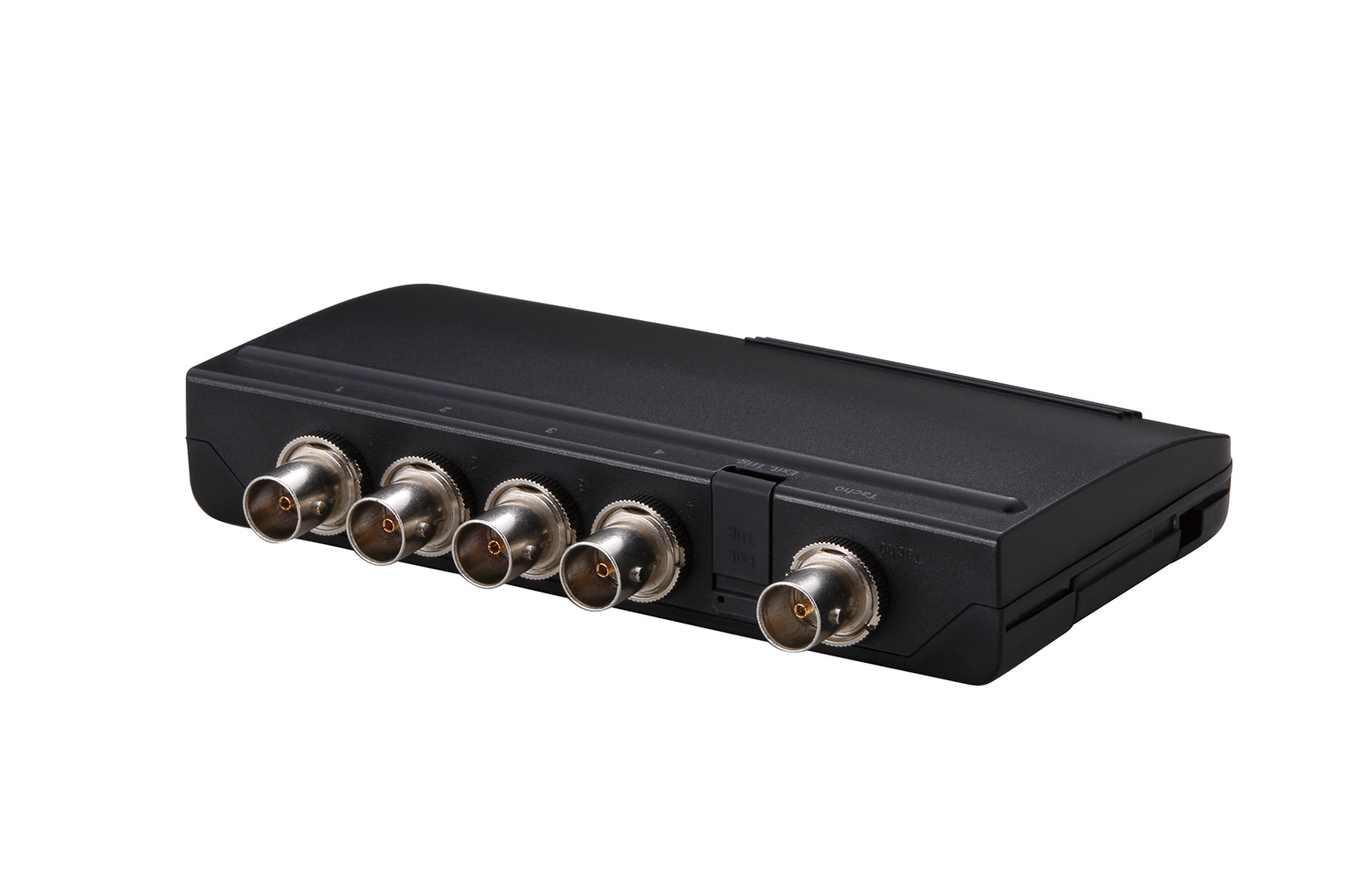

The RIONOTE system features a main control unit, the SA-01, which can be connected to either a 2-channel or 4-channel amplifier. For wireless communication between the amplifier and the main unit, the optional SA-A1WD wireless dock can be used, minimizing the need for long sensor cables. By pairing multiple amplifiers with wireless docks to the main unit, the system can support up to 16 channels.

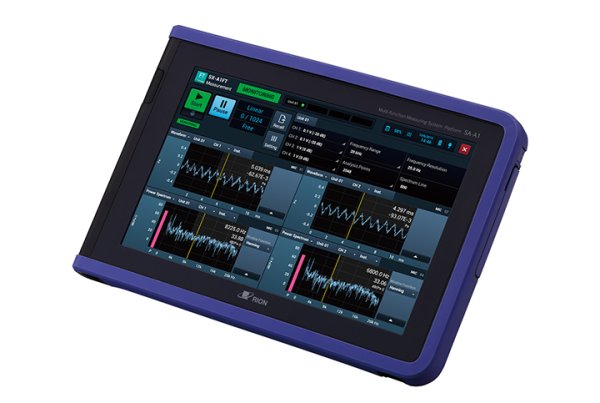

A 10.1-inch touchscreen LCD provides a user-friendly and intuitive interface for measurement tasks. Optional specialized programs—such as FFT analysis, octave band analysis, pass/fail evaluation, and vibration analysis—streamline tasks in quality control, production lines, equipment diagnostics, and R&D. In addition to microphones and vibration sensors, the system also accepts general AC/DC signal inputs, allowing for a wide range of measurement tasks to be performed efficiently.

What's Included

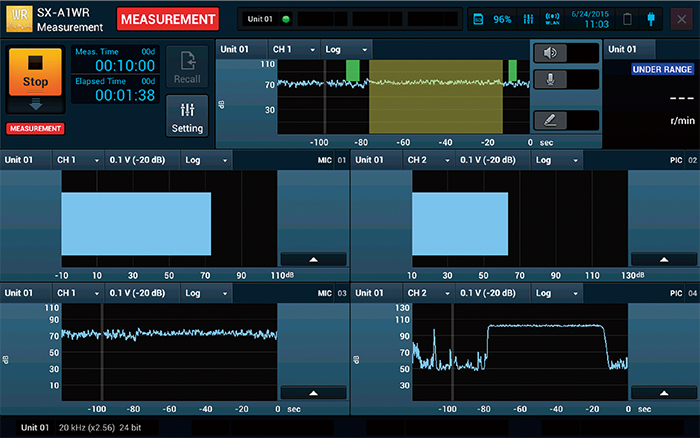

Each unit includes the SX-A1WR waveform recording program for display and recording of the time waveform of the incoming signals. Available recording time depends on the number of input channels and the selected frequency range. Recorded data is saved in the waveform format (.WAV) used for advanced post-analysis software compatible with the WAVE format.  Waveform data can be reviewed using the bundled viewer version of the AS-70 Waveform Analysis Software, or further analyzed using the full-featured advanced version of the AS-70 software. Additional features—such as 1/1 and 1/3 Octave Band analysis, FFT analysis, vibration analysis, and PASS/FAIL judgment analysis—can be incorporated through optional program add-ons or packages.

Each RIONOTE includes:

  • SX-A1WR Waveform Recording Program
  • BP-30 Rechargeable Li-Ion Battery
  • NE-20PA AC adapter
  • AS-70 Viewer Software
  • SA-A1 File Converter
  • 18-Month Warranty

Options

The RIONOTE meter is built to be expandable and upgradable, providing users with a comprehensive measurement tool for years ahead. Each unit includes Rion’s 18-month warranty. All program options are designed for easy installation through Rion’s streamlined installation process, which is both quick and user-friendly. Each option is pre-installed on SD cards, enabling users to independently install the software by inserting the SD card into the instrument and following the installation procedure. At least one Option is required.

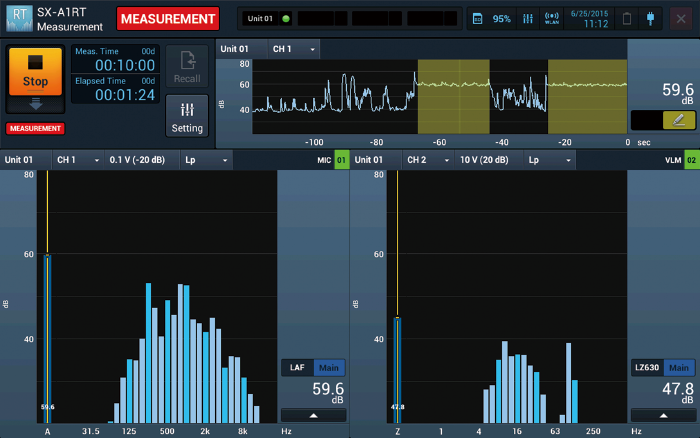

This option provides real time analysis of noise or vibration levels using either 1/1 or 1/3 octave bands. Processing values include time weighted sound pressure level Lp, averaged level Leq, maximum level Lmax, sound exposure level LE, minimum level Lmin and time percentile level LN (5, 10, 50, 90, 95, 33.3) with maximum 5 values.

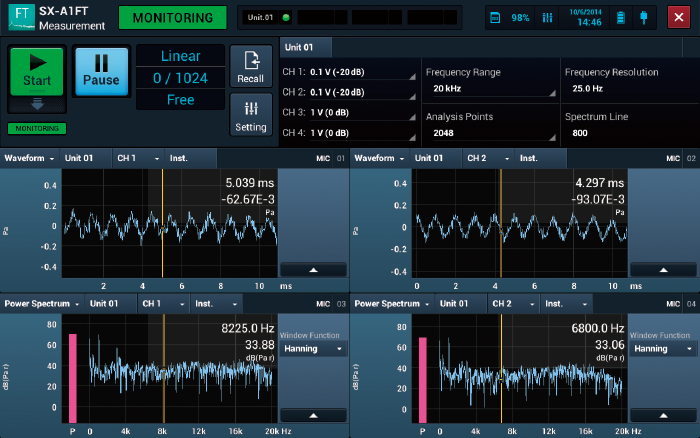

This option  enables FFT analysis on multiple channels simultaneously. The results are shown in clear graphs on the large color screen, in real time, or from stored data when using the recall function. A marker allows users to scroll through the data, and enables the readout of the level of a frequency of interest. The transfer function represents the relation between an input signal and output signal in the frequency domain, allowing the determination of amplitude and phase. In this mathematical calculation category, the RIONOTE supports coherence functions and cross spectrum processing.

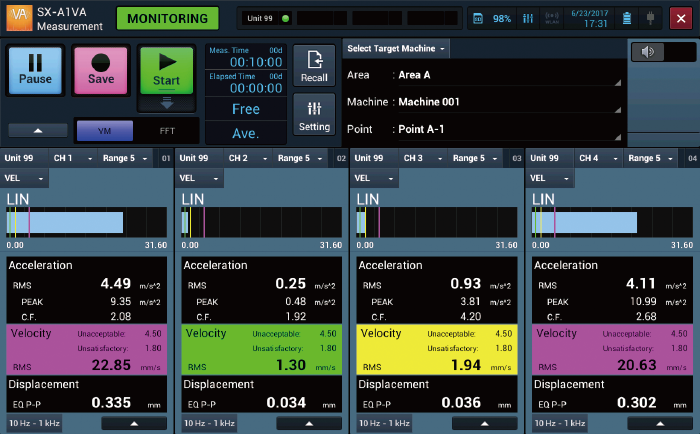

This option adds vibration measurement functions to the RIONOTE. All essential vibration measurement functions are provided, enabling equipment diagnosis and trend management for industrial machinery. The program also supports detailed diagnosis including FFT analysis and envelope processing.

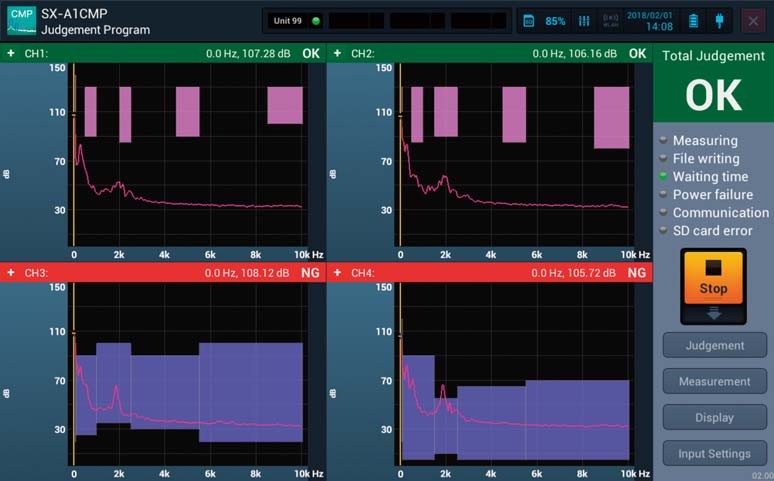

This option is suitable for pass/fail evaluation of noise, vibrations and other phenomena in production or inspection lines. After specifying one or more threshold areas in the frequency range where abnormality occurs, the program determines whether the respective measured peak level falls within the threshold area. Up to ten threshold areas can be set per channel, and the emulation results of each channel can be linked by AND/OR logic to obtain a comprehensive evaluation.

Available Packages

This package includes the SA-A1 main control unit, 2-channel amplifier, and the SX-A1FT program option pre-installed.

This package includes the SA-A1 main control unit, 4-channel amplifier, and the SX-A1FT program option pre-installed.

This package includes the SA-A1 main control unit, 2-channel amplifier, and the SX-A1FT and SX-A1RT program options pre-installed.

This package includes the SA-A1 main control unit, 4-channel amplifier, and the SX-A1FT and SX-A1RT program options pre-installed.

This package includes the SA-A1 main control unit, 2-channel amplifier, and the SX-A1RT program option pre-installed.

This package includes the SA-A1 main control unit, 4-channel amplifier, and the SX-A1RT program option pre-installed.

This package includes the SA-A1 main control unit, 2-channel amplifier, and the SX-A1VA program option pre-installed.

This package includes the SA-A1 main control unit, 4-channel amplifier, and the SX-A1VA program option pre-installed.

Accessories

AC Adaptor, 100 to 240V for RIONOTE. Standard accessory included with RIONOTE

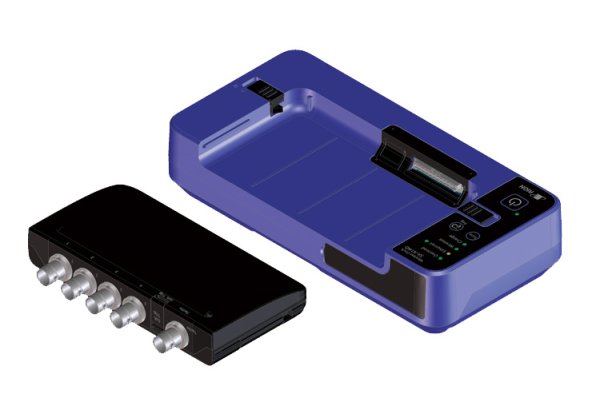

Dock for wireless communication between the SA-A1 and a 2-channel or 4-channel amplifier.

Additional 2-channel Amplifier with a SA-A1WD wireless dock

Additional 4-channel Amplifier with a SA-A1WD wireless dock

Applications

  • General purpose sound and vibration measurements
  • Building and ground vibration measurements
  • Multi-channel frequency analysis
  • Product noise testing
  • Data recording
  • Wireless measurements
  • Order tracking analysis of rotating machinery

Features

  • Configurable from 2 to 16 channels
  • 10.1 inch color Touch LCD Display
  • A , C, or Z-weighting filters
  • Fast (F), Slow (S) and Impulse (I) time weighting
  • Manual or auto save on internal memory or SD card
  • Frequency Analysis (FFT)
  • Power spectrum, Cross spectrum, Transfer function, Coherence, Overall, Partial overall
  • 1/1 and 1/3 Octave Band Analysis
  • Audio (Waveform) Recording
  • Internal or external trigger
  • Comparator output to trigger external devices
