To be used as the “Rubber Ball “ alternative to the Tapping Machine Excitation method in accordance with the ISO 16283-2 Appendix A.2 and the ISO 10140-5 Appendix F.2
Fulfill the requirements for a “standard heavy impact source” as given in the Japanese JIS A 1418-2:2019 Standard for impact sound insulation
Rubber raw material: Silicon rubber
Shape: Hollow sphere, diameter 178 ±1 mm, wall thickness 32 mm
Equivalent mass: 2.5 ±0.1 kg
Restitution coefficient: 0.8 ±0.1
Rubber hardness: 40º ±5º
Impact force characteristics: Impact force waveform (Example)
Please submit a request for quote for up to date pricing and shipping time.

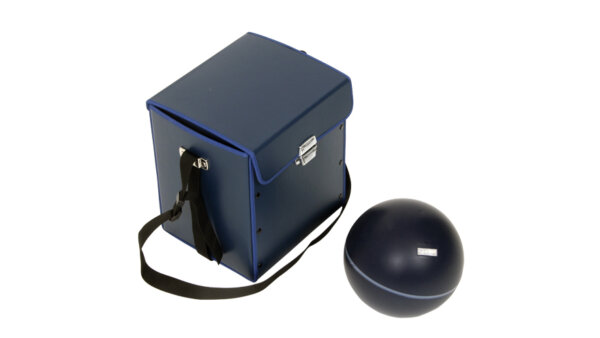

The Nor279 Impact Ball is designed for use as an impact source for the measurement of impact sound insulation performance.
