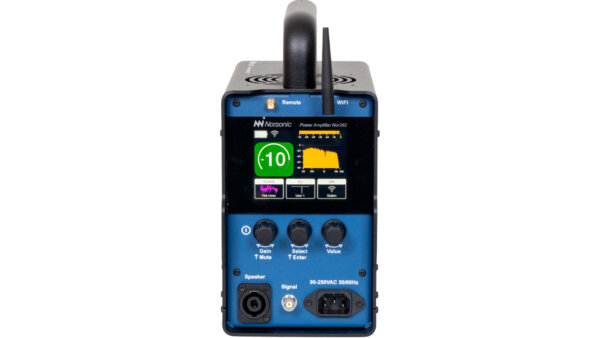

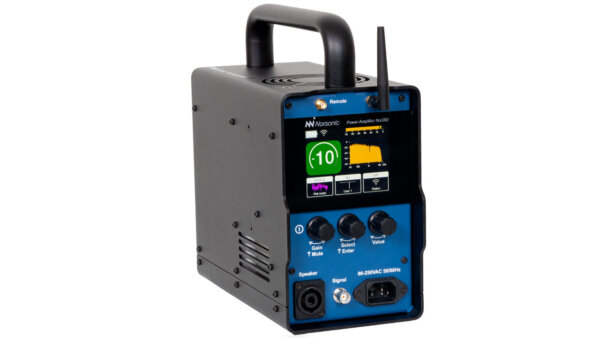

Norsonic Nor282 Power Amplifier

SKU: Nor282

Overview

Nor282 Power Amplifier ensures that you get the maximum sound pressure level out of the Norsonic range of speakers. With the Nor282 we have removed the need for signal and mains cable and added a graphical equalizer.

Thanks to the large color display and the graphical equalizer it is easy to adapt the speaker’s frequency response to the room response to fulfill the requirements for difference between adjacent 1/3 octave bands as per ISO 10140-5 and ISO 16283-1.

Applications

  • Sound insulation measurements
  • Reverberation time measurements
  • Absorption coefficient measurements

Features

  • Specially designed for building acoustic and room acoustic measurements.
  • Battery-operated.

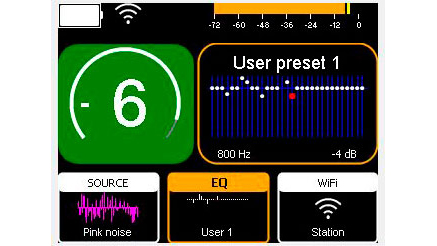

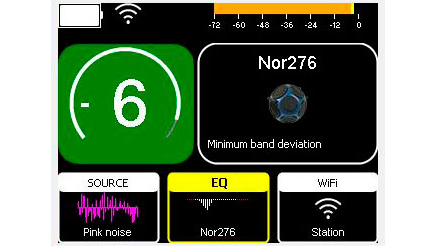

  • Graphical user-defined equalizer to optimize acoustic output from speaker.
  • Wi-Fi for easy connection to Norsonic measuring equipment.
  • Compact, lightweight, and rugged construction.

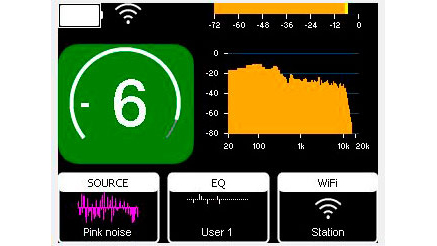

  • Onboard noise generator.
  • Emits 120 dB sound power level in the 50 – 5000 Hz frequency range when used with Norsonic Nor283 Dodecahedron Loudspeaker
  • Wireless Noise on/off hand switch.

Specifications

  • Output power: >120dB Lw if connected to a Nor283
  • Protection: Short-circuit and over-temperature protected
  • Output connector: Speakon NL4MP
  • Input connector: BNC
  • Input sensitivity: 1.0Vrms
  • Input impedance: 47 kΩ//220pF
  • Equalizer: +6 to -24dB (1dB step) in 1/3 octave bands from 20Hz-20kHz
  • Noise types: Pink, White, Brown, 1/1 and 1/3 octave BP noise, Sine, STIPA and external via BNC or WiFi. Swept Sine is supported from Nor850 Software.
  • Wi-Fi: 802.11b/g/n – 2.4Ghz band ex channel 13. Supports Infrastructure and Access Point
  • Temperature range (Operating / Storage / Charging):-10 to +35 °C / -10 to +50 °C / 5 –40 °C. Charging is aborted if outside temperature range.
  • Humidity: (Operating, Storage and Charge); 20-90% Non-condensing
  • Enclosure class: IP20
  • Dimensions / Weight: (DxWxH); 240 x 120x 256 (mm) / 5.1 kg
  • Mains: 90-250Vac 40-60Hz
  • Battery operating time: 90 minutes at full power when connected to Nor283 Dodecahedron Speaker
  • Battery type / Capacity: 48V LiFePO4, (Lithium Iron Phosphate) / 288 Wh
  • Recharge time: 2.5 hours
  • CE conformity standards:
    EMC EN-55032-2015+A11+A1-2020 EN-55035-2017+A11-2020 EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
    Radio spectrum efficiency EN 300 328 V2.2.2
    Safety and health EN 62368-1 :2014+A11 :2017 IEC 62311:2007 / EN 62311:2008, EN 61010-1:2010/A1 2019

Accessories

Included Accessories: Mains cable, WiFi and remote antennas, remote handswitch

Optional Accessory: Nor1327 Carrying Case
