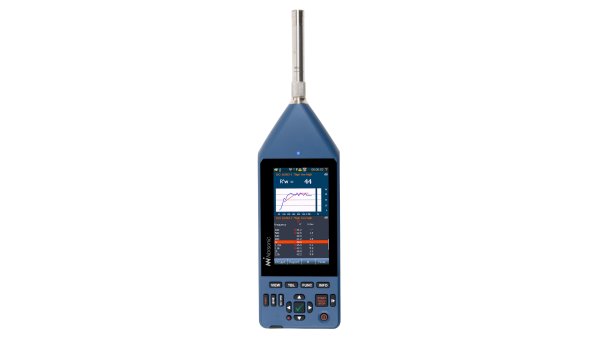

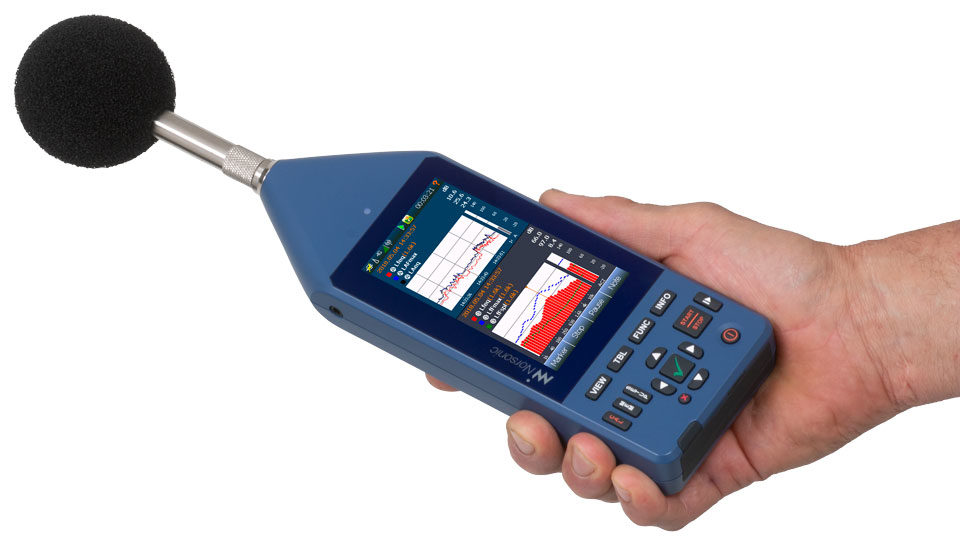

Norsonic Nor145 Class 1 Sound Level Meter

SKU: Nor145

One of the most full-featured sound level meters available!

The Nor145 is an advanced Class I sound level meter for noise and vibration analysis, featuring remote control, Wi-Fi, GPS, and integration with NorCloud and Norsonic software for advanced data processing.

One of the most robust
Sound Level Meters available!

The Nor145 is an advanced Class I sound level meter for noise and vibration analysis, featuring remote control, Wi-Fi, GPS, and integration with NorCloud and Norsonic software for advanced data processing.

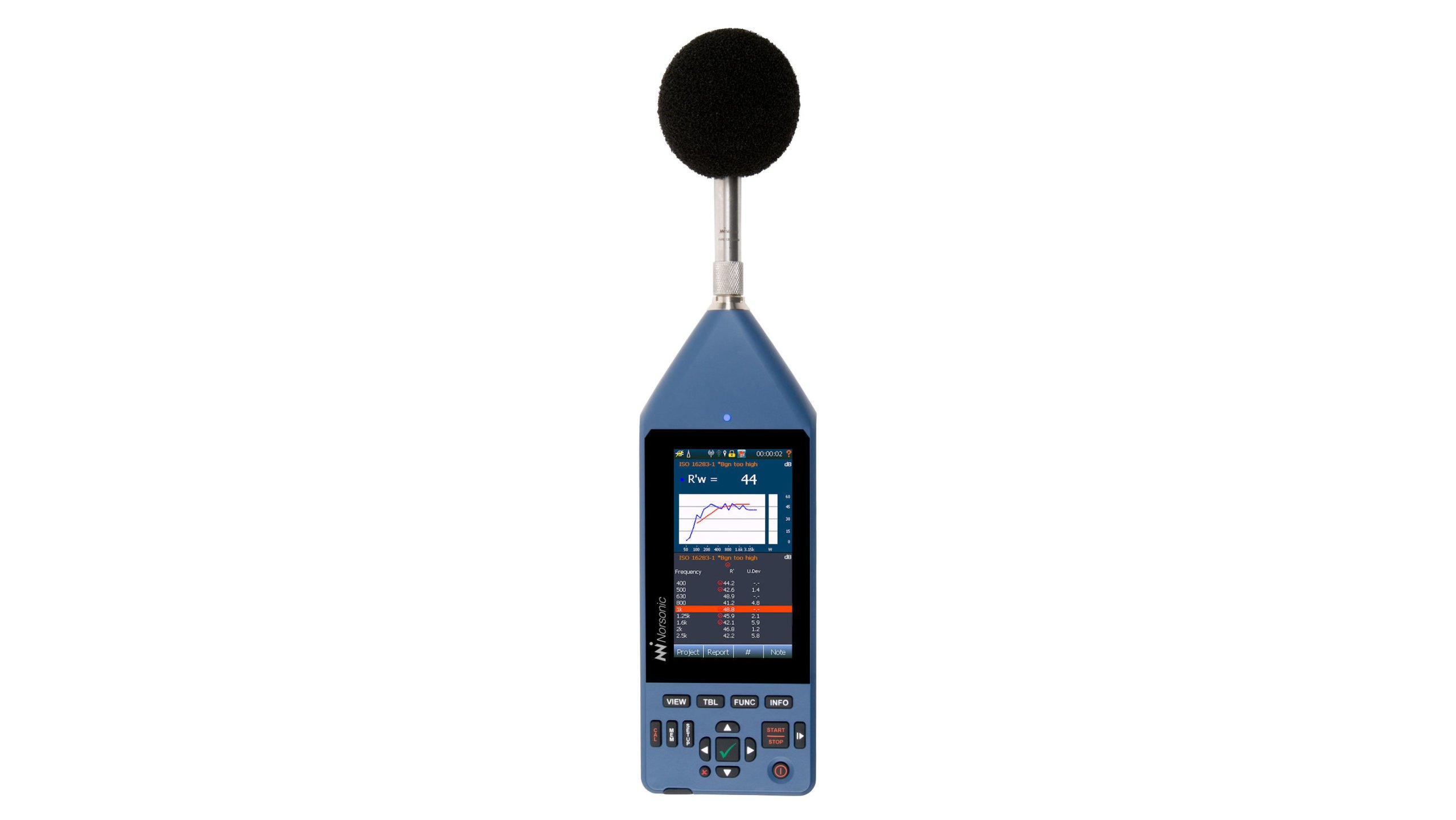

The Nor145 is a Class I sound level meter designed for a wide range of tasks ranging from basic noise measurements to advanced noise analysis, including room and building acoustics applications. It also supports vibration measurements when paired with an IEPE vibration sensor. Fully networked, the Nor145 allows remote operation and data access from a mobile device or a PC. Featuring a 4.3″ full-color touchscreen, it offers a user-friendly experience similar to that of a smartphone.

The Nor145 can also be managed via NorCloud and the Nor850 software. The included NorConnect software with every unit enables users to download, view, and generate Excel reports of the measurements, or perform further analysis using Norsonic’s software suite of postprocessing and reporting tools for building acoustics, environmental noise, and sound power.

What's Included

The Nor145 includes simultaneous measurements of A, C and Z frequency weightings, 1/1 & 1/3 octave band filters from 6.3 Hz – 20 kHz, measurement of Leq, LeqI (Impulse Leq), LE (sound exposure level), SPL, Lmax, Lmin, all along with parallel detection of Fast, Slow and Impulse time constants, 8 statistical calculation of percentile levels Ln, and TMAX5. The measurement data is analyzed over a defined global measurement duration with up to two parallel time profiles with an adjustable resolution down to 5 ms, and one moving time profile (moving Leq). Frequency analysis in 1/1 or 1/3 octave bands is available for global measurement periods. Noise Criterion (NC), Room Criteria (RC), and Room Criterion Mark II (RC II) can be calculated using 1/1 octave band analysis. The basic unit includes reverberation time calculations in 1/1 octave bands based on impulse excitation, one event trigger, voice annotation, and built-in web server with WI-FI. Audio .WAV recording is possible using manual start or triggered by a level exceedance event. The Nor145 supports 12 or 48 kHz audio recording sampling rate; 8, 16 or 24 bit audio recording resolution; and 0 to 60 dB digital audio recording gain. Included with the Nor145 is also the STI calculation based on the STIPA method option.

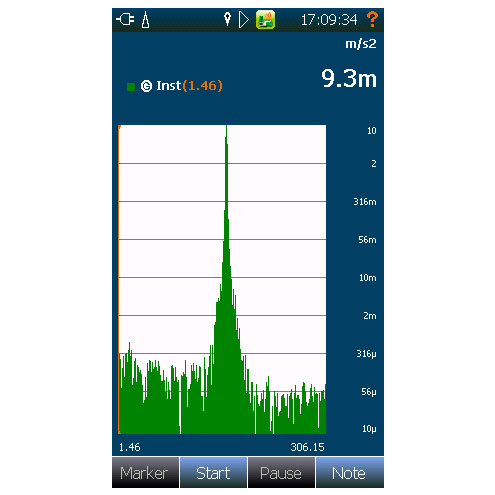

Vibration measurements are made easy with the Nor145 using IEPE powered accelerometers. By enabling IEPE power, an accelerometer can be directly connected to the 7-pin preamplifier LEMO socket via a suitable cable, such as the Nor1438. The accelerometer input can be configured to measure acceleration or velocity.

Each Nor145 is delivered with the following:

  • 32 GB Micro SD card (larger cards may be used)
  • Wind screen Nor1451
  • USB cable
  • Mains adapter Nor345B
  • Rechargeable battery
  • Carrying case Nor1346
  • Printed User Manual
  • Reporting software NorConnect
  • Control PC software NorVirtual


The microphone and preamplifier must be ordered separately from a range of available options. The standard choice consists of a removable Nor1209 preamplifier with a LEMO connector, and a Nor1239, ½” free-field microphone.

Options

The Nor145 Sound Level Meter is built to be expandable and upgradable, providing users with a comprehensive measurement tool for years ahead. Each unit includes Norsonic’s 3-year warranty. Norsonic’s retrofit policy guarantees regular software updates, introducing new features and options. The Nor145 offers a 60 days trial period where all options are enabled by the user if and when needed.

Available Kit Options:
  • Enables reverberation time decay and calculation of Tmax/Early Decay Time (EDT), T15, T20, and T30 based on impulse or noise excitation methods
  • Building acoustics project management and rating calculations according to ISO 16283
  • On-board signal generator with sine, white, pink, band pass filtered noise
  • Building acoustics reporting using NorConnect software

In addition to BA-Basic (included), features include:

  • On-board building acoustics project management and rating according to national standards, such as ASTM E336, E1007, E413, E989; DIN EN ISO, DIN 4109-4 and VMPA-Beschlussbuch
  • Pause/Cont. with Back-Erase feature
  • On-board post-processing, such as excluding measurements from an average, adjusting reverberation decay curves, etc.
  • Rating of Service equipment (ISO 10052)
  • Wireless Control of power amplifier Nor282
  • Support for Nor850 Room Acoustics Module (room impulse response measurements including ratings of open plan offices according to ISO 3382-3)
  • BA-BASIC Option Kit is included
  • Extends 1/3 octave band frequency down to 0.4 Hz and enables frequency analysis in 1/1 or 1/3 octave bands in up to two parallel time profiles with resolution down to 5 ms. A third order analog high pass filter with a -3 dB point at 3 Hz may be selected to avoid overloading the input circuitry from low frequency noise.
  • Enables audio (.WAV) recording pre-trigger from 0 to 120 seconds, including playback and listen function via headphones.
  • Enables up to 5 event triggers, each with four triggers types for independent setting of different trigger levels used for triggering markers, audio recordings, or pictures (when connected to an IP camera — requires GPS and support for external IP camera option).
  • Enables an innovative marker management system, where the user can select up to ten markers, add names, colors, and associate the marker with an action. Each marker can either be a single (snapshot in time) or a toggle (on/off) marker. If enabled, an action for each marker can be any combination of the following; enable a reference tone, start a recording, take a picture, or set one of the digital outputs found on the 15 pin socket. Voice and text notes may added the same way as markers are added to an ongoing measurement. Markers can be added during the measurement, added during post processing on the instrument, and moved or deleted.
  • The Nor145 also offers six system markers that are automatically inserted in the Level versus time profile. These are; Measurement Pause marker, Measurement continue marker, Audio recording marker, Picture marker (using and external IP camera), Signal overload marker, Battery low marker, Event trigger marker
  • BA-BASIC Option Kit is included
  • This kit consists of the ENV-ADVANCED and BA-ADVANCED option kit
  • Additionally, this option kit enables the FFT option with a sampling rate of 48 kHz and more than 16,000 lines, and a dynamic zoom from 1 – 64. The upper frequency is 22 kHz and may be extended to 40 kHz via the Ultrasonic option (sold separately). Additionally, the FFT analysis and 1/3 octave band spectrum can be measured and viewed simultaneously.
Additional Options:

This option enables the use of GPS for position identification and support for GPS time synchronization. GPS time synchronization is especially useful when several Nor145s are used for capturing the same noise event, such as during blast or vibration monitoring. The GPS position is stored as a part of the measurement file. It may also be set to be a part of the file name.

Additionally, this option enables the connection of an external IP camera, supporting storage of event-triggered images. The photos taken during a measurement are marked as events in the Level vs. Time graph and can be viewed on the Nor145, in NorCloud, or in the NorReview software.

This option is not available as retrofit and must be ordered with the base unit.

This option enables the communication of the Nor145 with Norsonic’s NorCloud remote monitoring platform.
NorCloud subscriptions are activated at norcloud.norsonic.com.

This option requires the ENV-Advanced option kit.

This option kit enables FFT analysis with a sampling rate of 48 kHz and more than 16000 lines and a dynamic zoom from 1 – 64. Upper frequency is 22 kHz and may be extended to 40 kHz via the Ultrasonic option (sold separately). Additionally, the FFT analysis and 1/3 octave band spectrum can be measured and viewed simultaneously.

This option may be added to the base unit and is included with the CONS-ADVANCED option kit.

  • Extends the frequency range of the 1/3 octave band filters to 40 kHz and 1/1 octave band filters to 31.5 kHz
  • Audio recording is extended to a maximum sampling rate of 96 kHz
  • AU (audio) weighting network is enabled, providing a total of 4 simultaneously measured frequency weighting networks in addition to 1/3 or 1/1 octave band filters, allowing simultaneously measurement of A, AU, C and Z weighted parameters, such as LAeq, LAUeq, PeakC and Peak Z.
  • Simultaneously measurement of “Ultrasound noise at work” with “standard noise at work parameters”. This is a unique feature not seen in any handheld instrument.

Due to the limitation in the frequency range of a standard ½” microphone, a ¼” microphone capable of measuring ultrasound is required for best use of this option. Please contact us for further information or recommendations.

This option requires the ENV-Advanced option kit.

Full remote programming support for environmental measurement features of the Nor145. This is an ideal tool for system integrators requiring a sound level meter as a frontend to their application. This option includes support for Nosie Compass and a Weather station. The use of the API option requires a purchase of Nor1056, DLA – Developer License Agreement. This grants 8 hours of free support with direct access to the Norsonic’s API developer team.

  • Control and configuration of Nor145, Noise compass and weather station
  • Measurement data readout from Nor145, noise compass and weather station
  • System data readout (battery, memory, etc.) and data management
  • Continuous audio stream in parallel with measurement data
  • Software developer kit including application program examples
  • Developer support provided

This option requires the ENV-Advanced option kit.

The built-in LTE modem enhances the functionality of the Nor145 by enabling remote communication with Norsonic’s Norcloud for remote monitoring applications. The use of the built-in modem eliminates configuration challenges and compatibility issues associated with external modems.

This option is not available as retrofit and must be ordered with the base unit.

Accessories

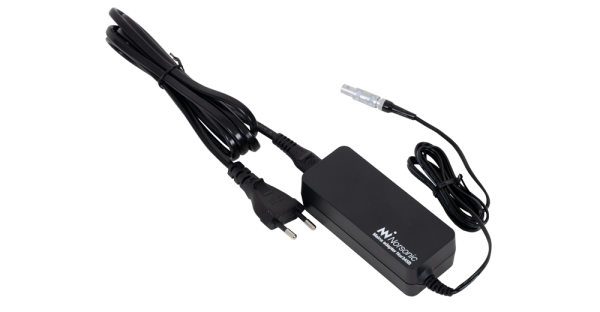

Nor345 Mains Adapter

Standard accessory included with Nor145

Mains adaptor 100 – 240 Vac 50-60Hz, 12Vdc 1,2 A.
Supplied with Mains plug for destination country.

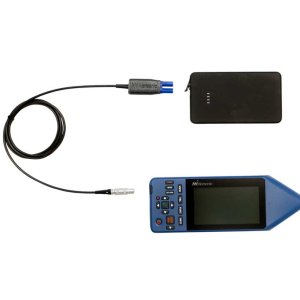

Nor4641, a cable with incorporated safety protections, that allows you to plug any 12V Jump Starter/ start booster for motorbike or car to power your instrument.

Nor1255 is a small battery-operated precision class 1 microphone calibrator generating 114 dB @ 1k Hz conforming to IEC 60942 and ANSI S1.40.

Nor1256 is a small battery-operated precision class 1 microphone calibrator conforming to IEC 60942 and ANSI S1.40.
The combination of two different levels and two different frequencies allow both level linearity and frequency linearity to be verified. In addition the sound calibrator measures the environmental conditions; air pressure, temperature and humidity.

Nor1261 is a “clip-on” tripod adaptor for use with 1/2″ Preamplifiers. Tripod attachment threads is 1/4″.

“Clip-on” adjustable Tripod Adaptor for 1/2″ Preamplifiers. Both 3/8″ and 1/4″ tripod screws can be used.

Standard accessory included with Nor145

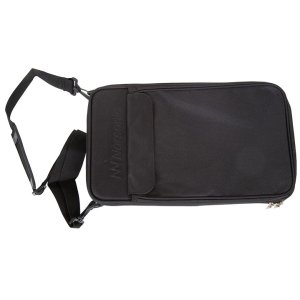

Softbag in nylon with room for Sound Analyser Nor145, calibrator, and accessories. The bag is normally included in Nor145 deliveries.

Wind Shield for 1/2″ microphones/preamplifiers. Diameter 90mm.

Standard accessory included with Nor145

Wind Shield for 1/2″ microphones/preamplifiers. Diameter 60mm.

Cable (2m) for connecting the AC output of Nor145 to external equipment such as power amplifiers etc.
Please note that the Nor4514 is replaced by Nor4514A. The A version is needed for use with Nor145.

Preamplifier extension cable Nor1408A comes with Lemo connectors to fit directly in the measurement chain. The contact pins are gold plated and the connector housing is protected with a special rubber sleeve. This protects the connectors in use from moisture, dirt and bumps. The Nor1408A replaces the Nor1408. The A version is similar to the 1408 but has in addition added threads on the outer shell of the female connector to fix the lock ring on a Nor1206 and Nor1209 preamplifier. The cable is a general purpose cable suited for all preamplifiers following the Lemo 1B standard developed by Norsonic, such as Nor1201, Nor1203, Nor1204, Nor1206 and Nor1209 as well as preamplifiers of other brands.

Standard lengths are 5, 10, 20, 30 and 50 meters. Special lengths on request. The /xx in the order code denotes the length of the cable.

This cable is designed for fixed installations in test chambers. It has the same pinout as a standard Nor1408 cable.

Preamplifier cable Nor1410A comes with Lemo connectors to fit directly in the measurement chain. It features high quality connectors with gold plated contact pins. The Nor1410A replaces the Nor1410. The A version is similar to the 1410 but has in addition added threads on the outer shell of the female connector to fix the lock ring on a Nor1206 or Nor1209 preamplifier. The cable is a general purpose cable suited for all preamplifiers following the Lemo 1B standard developed by Norsonic, such as Nor1201, Nor1203, Nor1204, Nor1206 and Nor1209 as well as preamplifiers of other brands.
Standard length is 2 meter. For special length see Nor1408A.

Nor1438 is a BNC to Lemo cable.
Having a length of 2 meters, this cable is a 3 mm thin and flexible cable with BNC connector in one end and a Lemo male in the other end. For connection of an electrical signal to a measuring instrument using Norsonic Lemo system.

Remote hand switch with 5m cable for external triggering of start or audio recording (if applicable) on Nor145.

Applications

  • Environmental noise assessments
  • On-board building acoustic rating and evaluation

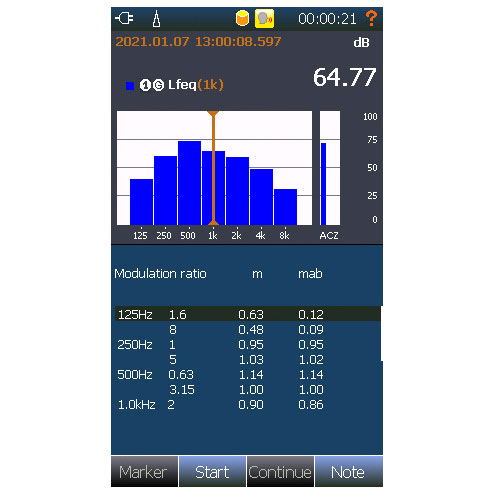

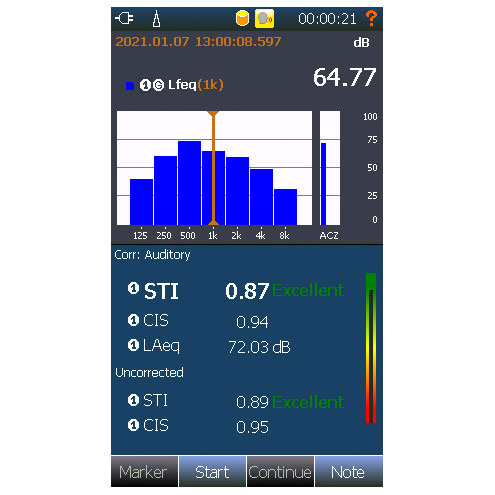

  • Room acoustics – STIPA

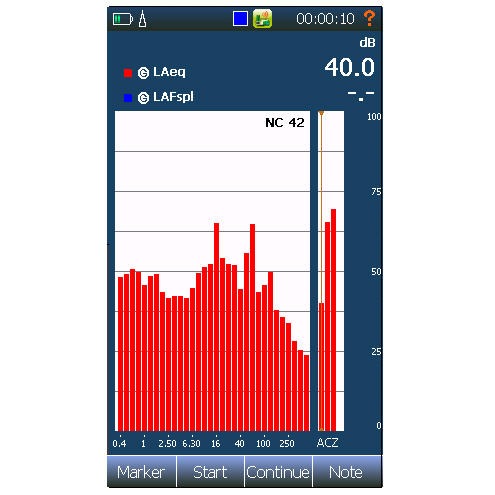

  • NC, RC, RC II rating of HVAC noise
  • Noise monitoring
  • Reverberation Time (RT60)
  • General vibration
  • Product noise testing
  • Vibration measurements
  • Noise in the workplace
  • Single-channel front end to Nor850
  • Infrasound
  • Ultrasound

Features

  • Class 1 Precision sound level meter, frequency analyzer, and vibration meter
  • Easy connectivity via built-in WLAN and 3G/4G LTE modem
  • Large color touchscreen (4.3”)

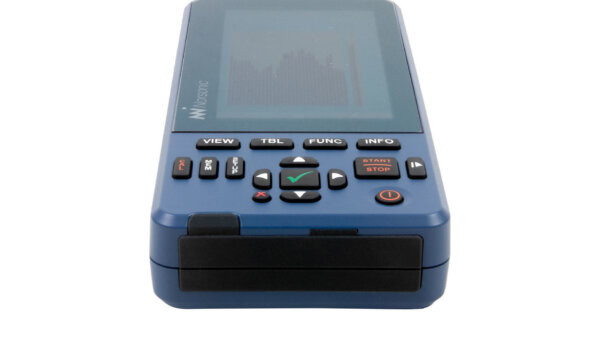

  • Real push keys for quick operation in challenging environments
  • Intuitive user interface with graphical icons for selection of measurement mode and custom-made user setups
  • Voice, text notes and built-in GPS for documentation of measurements
  • Wide frequency range (0.4 Hz – 40 kHz in 1/3 octave bands and FFT)

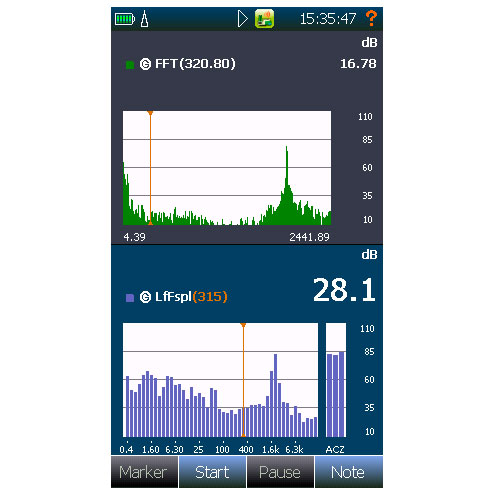

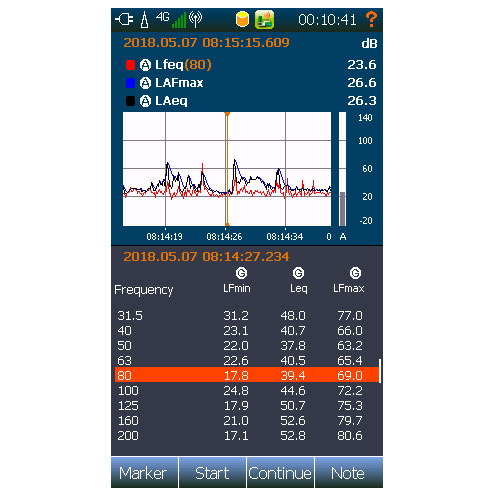

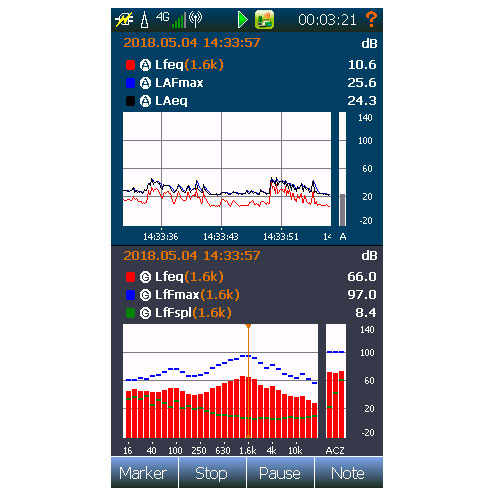

  • Parallel 1/3 octaves band and FFT analysis
  • Vibration analysis using IEPE vibration sensors
  • Easy remote control via smartphone
  • Easy management of measurement files in NorConnect
  • 120 dB measurement range

Specifications

The Nor145 Sound and Vibration Analyzer complies with the most recent revisions of the following national and international standards, including amendments: all Type 1 / Class 1; IEC 61672, IEC 61260, DIN 45657, ANSI S1.4, ANSI S1.11, and ANSI S1.43. Additionally, it conforms to the now obsolete sound level meter standards IEC 60651 and IEC 60804.

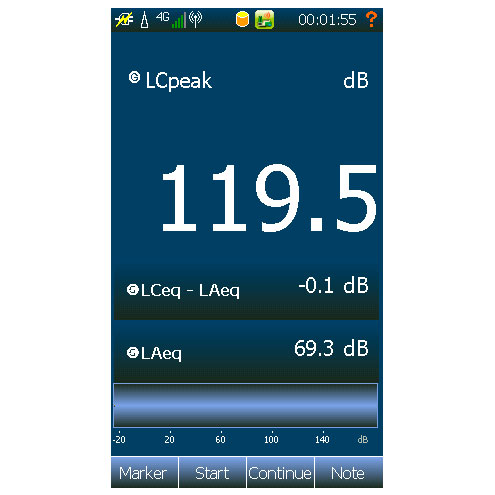

Simultaneous measurement of SPL, Leq, LeqI, LMax, LMin, LE, LEI, LPeak, Ln and Tmax5.
Time weighting functions: Fast, Slow and Impulse (Simultaneous).
Spectral weighting functions: A, C and Z – weighting (Simultaneous).

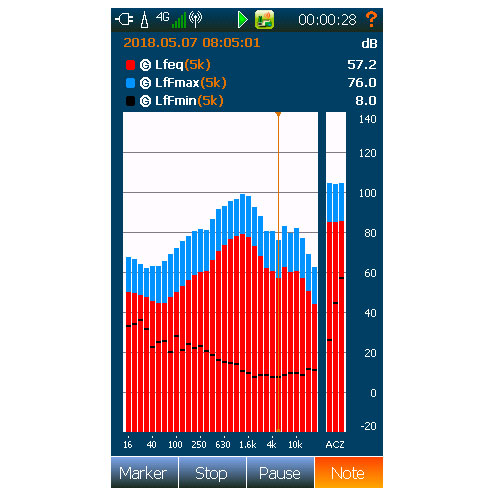

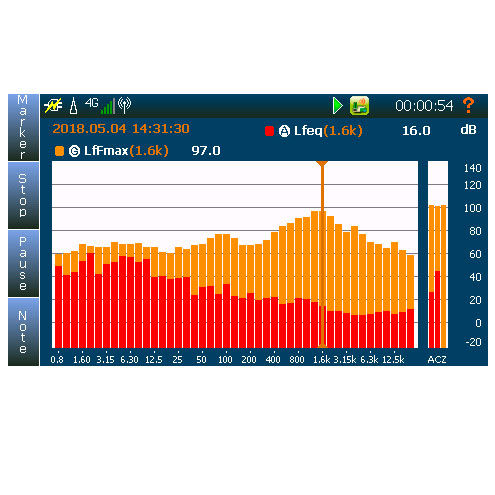

Frequency analysis: 1/1 and 1/3 octave band real time filters from 0.4 Hz to 20 kHz.

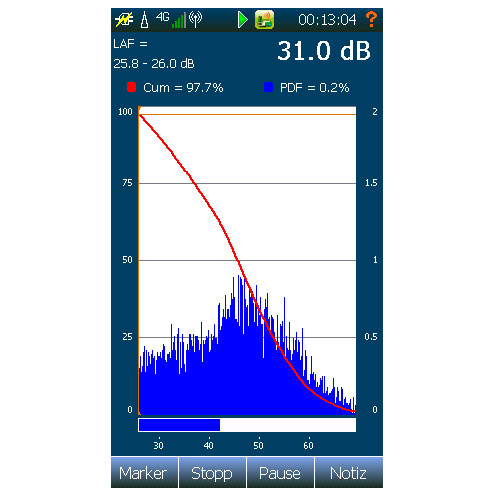

Statistical calculations: 8 individual adjustable percentiles from L0.1% to L99,9%. The statistical calculations are performed in real time within each frequency band and for each profile period if period length is set longer than 2 minutes. Class width is 0.2 dB. Dynamic range is 130 dB.
Vibration: acceleration (m/s2 ), velocity (m/s), or displacement (m)

Overall measurement duration: 1 sec – 7 days. (If set to Repeat or Synchro mode a new measurement will be started automatically, with no time gap between each measurement.).

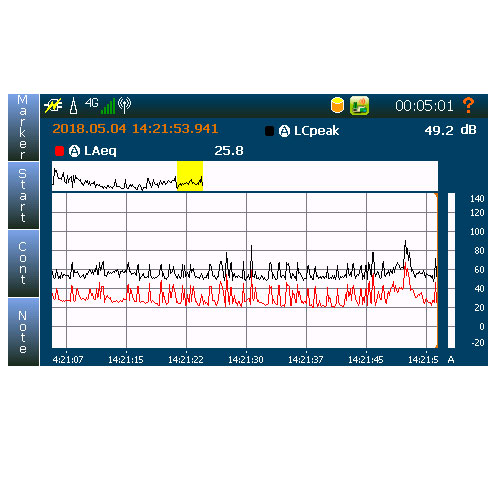

Time profile A resolution: 5 ms – 24 hours including full frequency spectra. From 1 sec if profile B or Moving is enabled.
Time profile B and Moving resolution: 1 s – 24 hours. A, C and Z – no frequency spectra.

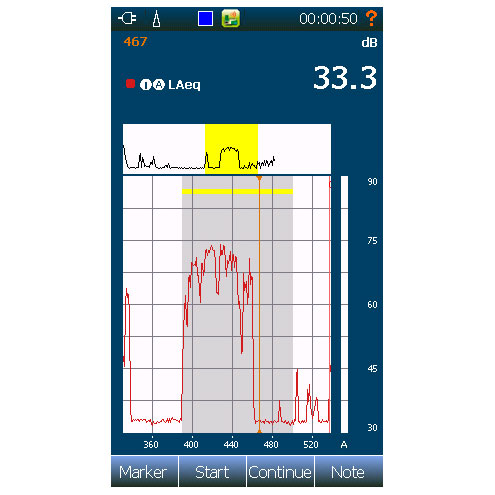

Back erase in Pause mode: 0-20 sec free delectable graphical back erase.

12 and 48 kHz sampling rate

8 , 16 and 24 bits

0-120 second pre-trigger

One range covering 120dB without any range adjustments.
Self noise measured with 1/2” microphone with a nominal sensitivity of 50mv/Pa: 17 dBA.

Maximum RMS level 137 dBA, Maximum Peak level 140 dB PeakC.

Built in noise generator with Sine, White, Pink and 1/1 and 1/3 octave band passed filtered noise.

Parallel calculation of T15, T20 and T30 in addition to Tmax for Noise excitation and EDT for impulse excitation.

Sampling rate: 48 kHz.

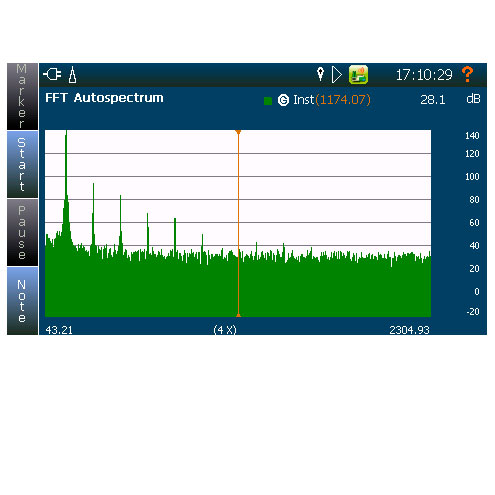

Frequency resolution: 1.46 Hz or 2.92 Hz (FFT size 8192 or 16384 lines).
Upper frequency: 22 kHz
Functions: Auto spectrum, linear averaging.
Acquisition rate: ~700 ms – no overlap.
Display: Dynamic display zoom 1 – to 64 in power-of-two steps.
Time windowing: Hanning

4.3” color display capacitive touch. Protected by an anti-smudge coated and scratch-proof glass.

Optionally built-in GPS for position identification and support for time synchronization.

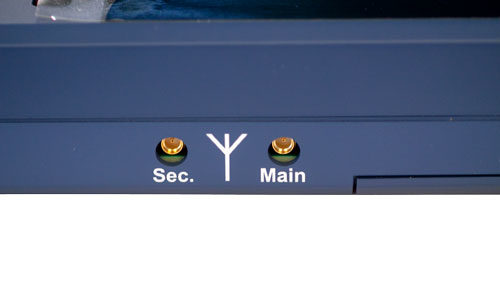

Optional 3G/4G LTE modem using internal antennas. Optional external antennas may be connected. External antenna also supports GPRS connection.

Storage modes: Manual, Auto, Repeat and Synchro. Synchro synchronize the start of the next measurement to the next full hour.
Internal memory: 350 MB – not used for measurement storage.

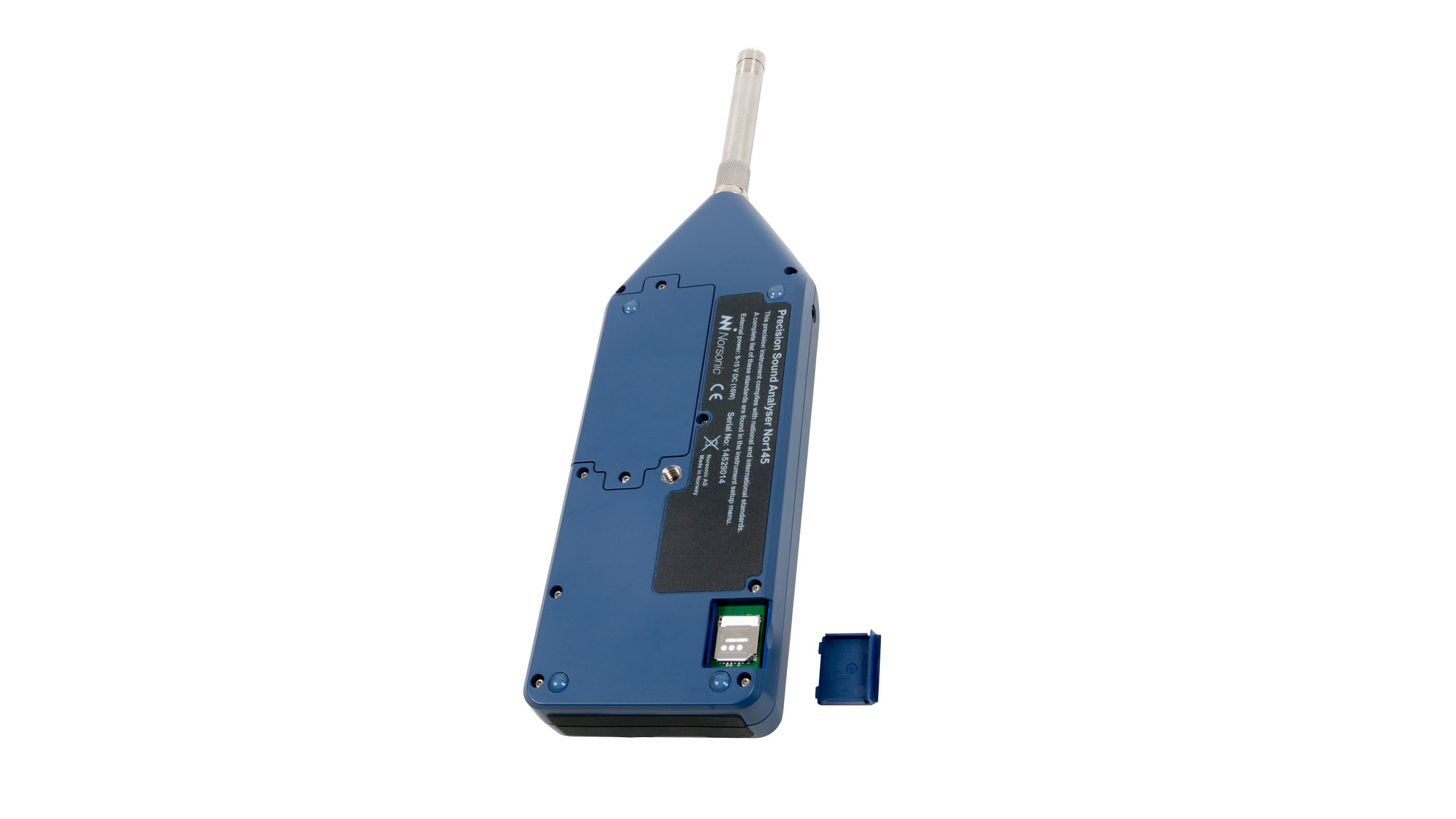

Micro SD card: Supports XC and HC standard. No limitation in maximum SD card size.

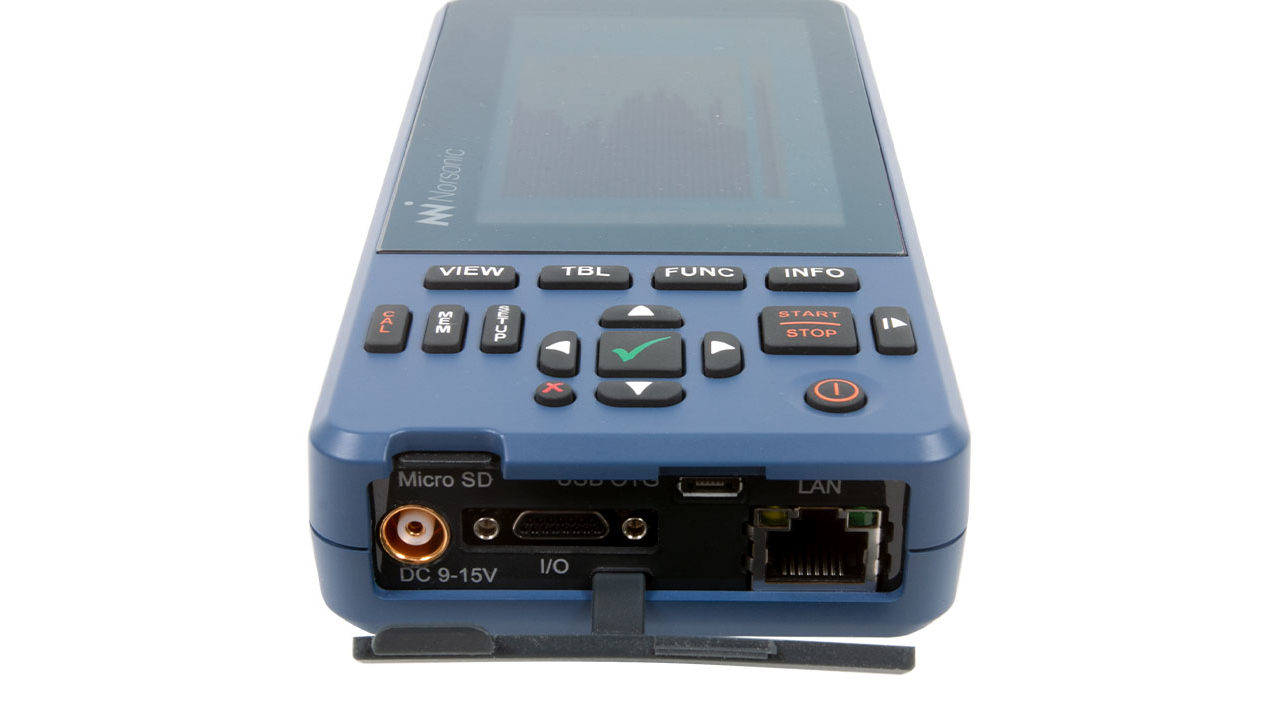

Data Transfer: SD card to PC, LAN and USB using NorConnect software.

Vibration measurements are made easy with the Nor145 using IEPE powered accelerometers. By enabling IEPE power, an accelerometer can be directly connected to the 7 pin preamplifier LEMO socket via a suitable cable, such as the Nor1438. The Nor145 can perform analysis in either dB or real units, such as mm/s².

Microphone input: One microphone input. Supports standard 7 pin Lemo preamplifiers including SysCheck, Microphone heating, TEDS and IEPE.

Polarization voltage: 0.

Preamplifier voltage is ± 15V

Comment microphone: Via 3,5 pin mini jack.

AC out, 100mV full scale on 15 pin I/O socket.

3 pin mini jack headphone socket for replay of voice notes, listen to microphone AC signal or replay of audio recordings. Comment microphone for voice notes is connected to same plug.

Signal generator on 15 pin I/O socket with Pink, White, Bandpass filtered, sine and impulse noise.

Rechargeable 7 Ah Li-Ion batteries with built in fuel gauge.
External power: 9 – 15Vdc 3-5Watt.

Typical battery lifetime: 8 hours.

Dimensions (ex. preamplifier and microphone LxWxH): 235 x 82 x 29 mm.
Weight (including preamplifier and microphone): 535 g.

Environmental Application Features

The Nor145 is designed to be the preferred tool for all types of environmental noise measurements.

Up to 60 measurement parameters may be logged simultaneously including, A, C and Z frequency weightings, 1/1 & 1/3 octave bands,  Leq, LeqI (Impulse Leq), LE (sound exposure level), SPL, Lmax, Lmin, Moving Leq, all along with parallel detection of Fast, Slow and Impulse time constants, 8 statistical calculation of percentile levels Ln, and TMAX5.

Global measurement duration can be defined from 1 sec – 7 days (if set to Repeat or Synchro mode a new measurement will be started automatically, with no time gap between each measurement.) Two parallel time profiles may be defined with an adjustable resolution down to 5 ms.

The advanced trigger system enables different trigger levels for day, evening, or night with event triggers to collect markers, audio recordings, and pictures (using an IP camera).

The included NorConnect software with every unit enables users to download, view, and generate Excel reports of the measurements, or perform further analysis using Norsonic’s software suite of postprocessing and reporting tools for building acoustics, environmental noise, and sound power.

Nor145 is optimized for use with Norsonic NorCloud, Norsonics’ cloud service for noise measurement, control, and reporting, all easily connected over the internal WLAN or 4G modem.

Features

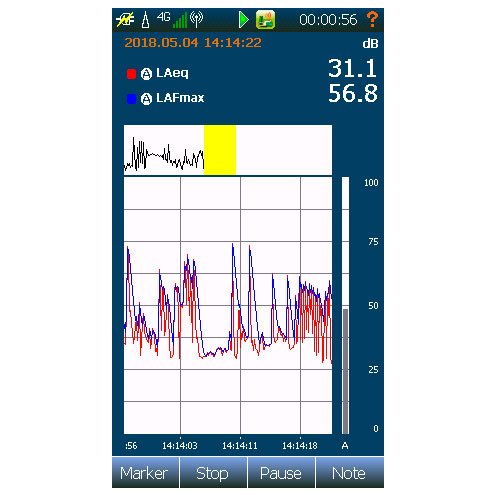

  • Twin time profiles with resolution from 5 ms and additional Moving report with trigger possibility.
  • Extensive trigger system for reports, audio recording, camera and digital output lines.
  • Voice, text and picture notes.
  • 5 independent event triggers
  • Automatic detection of impulsive noise (ISO/PAS 1996-3:2022).
  • Advanced marker management.
  • Full remote-control support via NorVirtual app for smartphones.
  • Seamless connection to NorCloud for unattended monitoring and reporting.
  • 0-20 sec graphical back erase / pause function.
  • 0-120 sec Audio pre-trigger.
  • Seamless integration to post-processing programs and Excel.
  • API interface for system integrators.

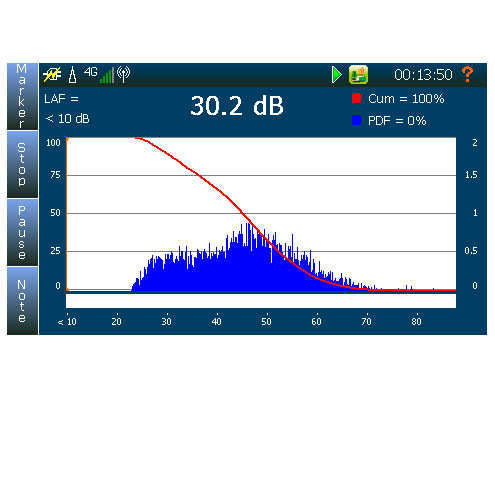

General analyzer (environmental) mode offers portrait and landscape display views. All portrait views can be a single or dual-type frame.

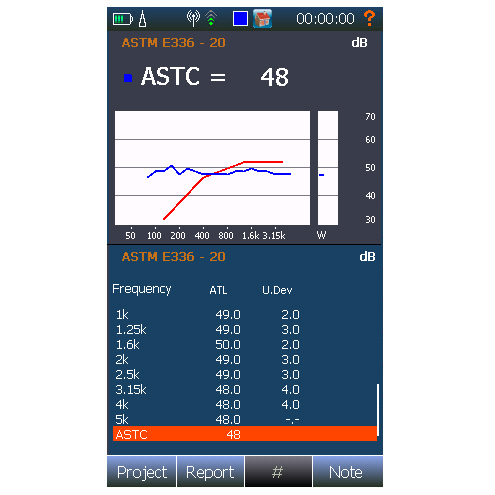

Building Acoustics Application Features

Norsonic is known for its long-time tradition of creating state-of-the art building acoustic analyzers. The Nor145 sound level meter is no exception!

The Nor145 can be used as a stand-alone single channel building acoustic analyzer, or as a remotely controlled building acoustic frontend (wireless) for the advanced Nor850 multichannel software through its WLAN hotspot feature.

The Nor145 offers a built-in signal generator for excitation of the source room level measurements or for excitation of the reverberation time measurements. The results are measured in accordance with all types of building acoustics standards, including ASTM E336, ASTM E1007, ASTM E989, ASTM 413 and ISO 16283. With additional background level measurement results, the Nor145 offers an on-board calculation of the final airborne sound insulation ratings such as the ASTC (Apparent Sound Transmission Class), NIC, DnT, Rw and others. A similar possibility is available for impact sound insulation ratings Ln,w or AIIC (Apparent Impact Insulation Clas) using a tapping machine such as the Nor277.

The Nor145 analyzer is seamless integrated with the Nor850 software; either as a remote frontend to the Nor850 Measurement System, or for easy post processing in the Nor850 Reporting System.

Features

  • Complete calculation of airborne, façade and impact sound insulation indices in accordance with international and national standards
  • Wireless single or dual channel measurements using one or two Nor145 controlled from Nor850
  • Reverberation time measurements with parallel calculation of T15, T20, T30, Tmax/EDT
  • Ensemble averaging of reverberation decays
  • Backward integration of reverberation decays based on impulse excitation
  • User adjustment of individual RT decay lines
  • Signal generator with white, pink or bandpass filtered noise
  • Supports multiple microphone and loudspeaker positions with corresponding on-board energetic or arithmetic averaging
  • Project overview with information about all individual measurement details and project progress results
  • Seamless integration with Nor850 reporting software
  • Easy management of measurement files using NorConnect software

STI calculation based on the STIPA method

  • The STI mode supports the latest revision of the STIPA standard, IEC 60268-16 revision 5.
  • Additional features are background noise correction and auditory correction.
  • Background noise correction can be turned on/off.
  • Auditory correction gives a lower score on the STI value if the STIPA noise signal is too loud or too low. It shall normally be turned on, but the latest revision of the standard recommends it to be possible to turn it off in some special circumstances.
  • The built-in signal generator generates the STIPA signal.
  • A complete measurement sequence takes only 21 seconds.

Norsonic Nor145 Class 1 Sound Level Meter

SKU: Nor145

One of the most full-featured Class I sound level meters available.

The Nor145 is an advanced Class I sound level meter for noise and vibration analysis, featuring remote control, Wi-Fi, GPS, and integration with NorCloud and Norsonic software for advanced data processing.

Options

Full details are provided in Options section above.

Accessories

Full details are provided in Accessories section above.

Add to Quote Cart
