Remote hand switch with 5m cable for external triggering of start or audio recording (if applicable) on Nor145.

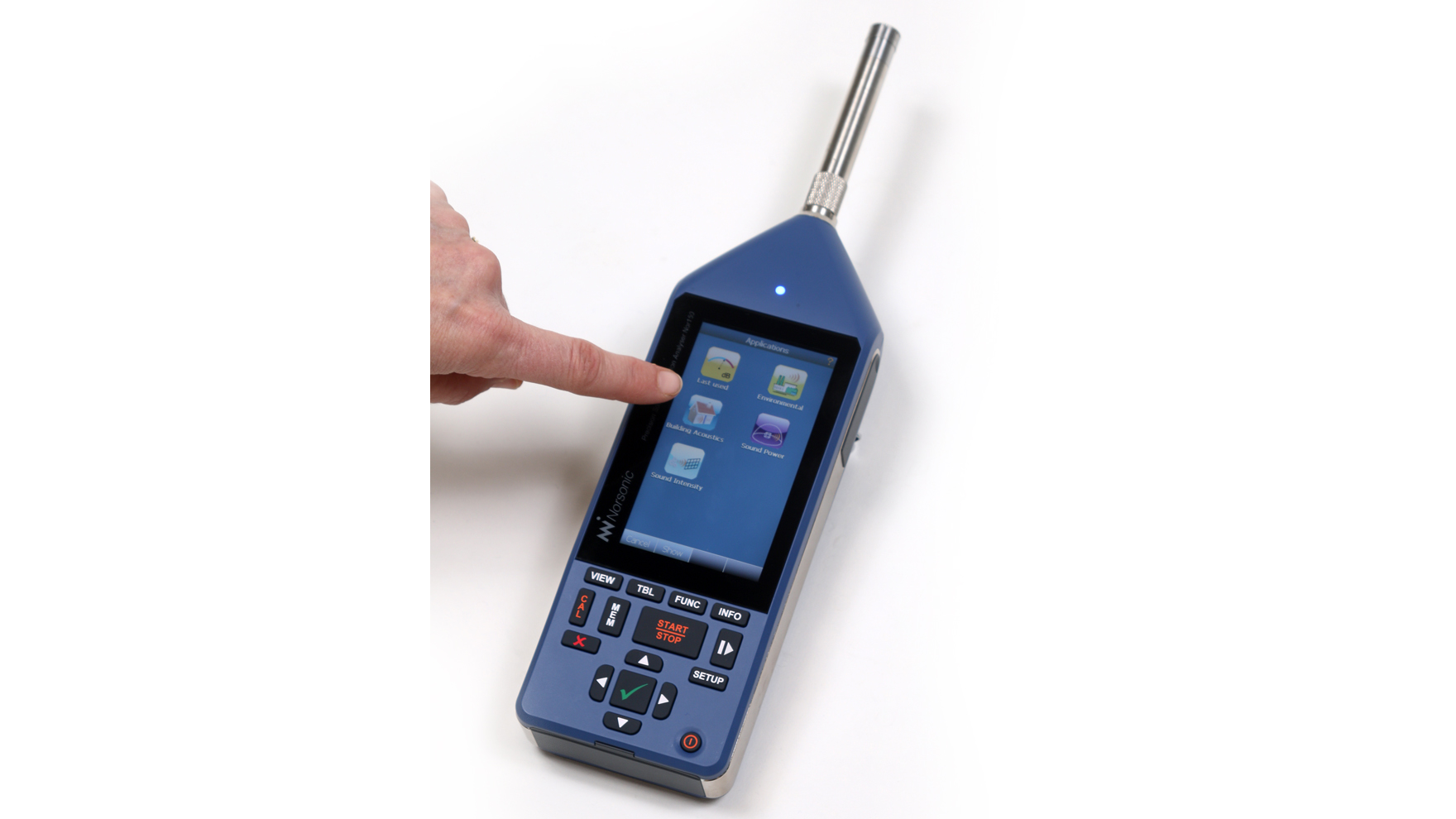

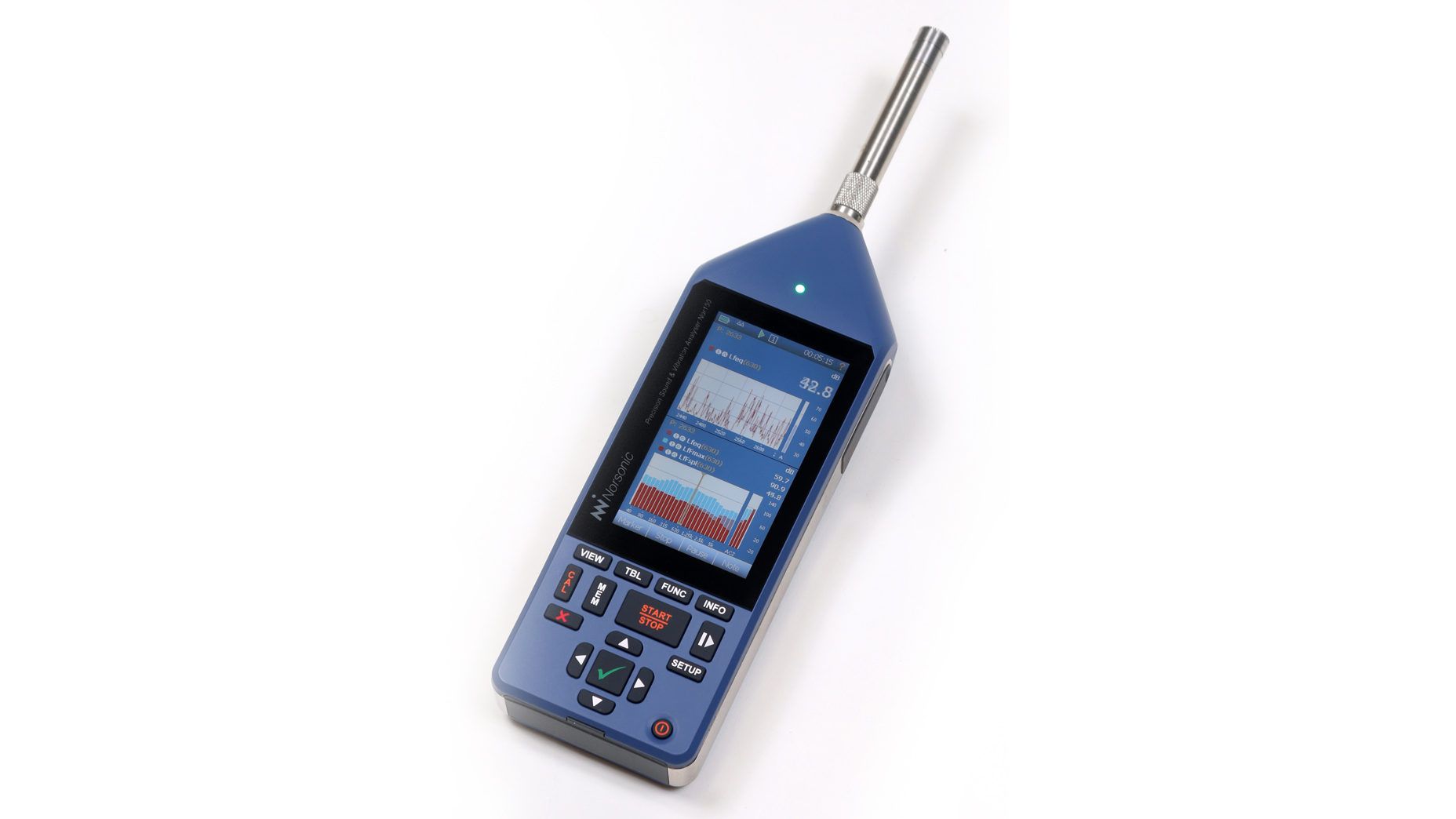

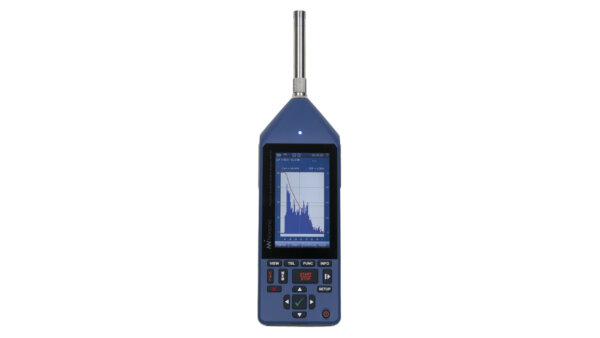

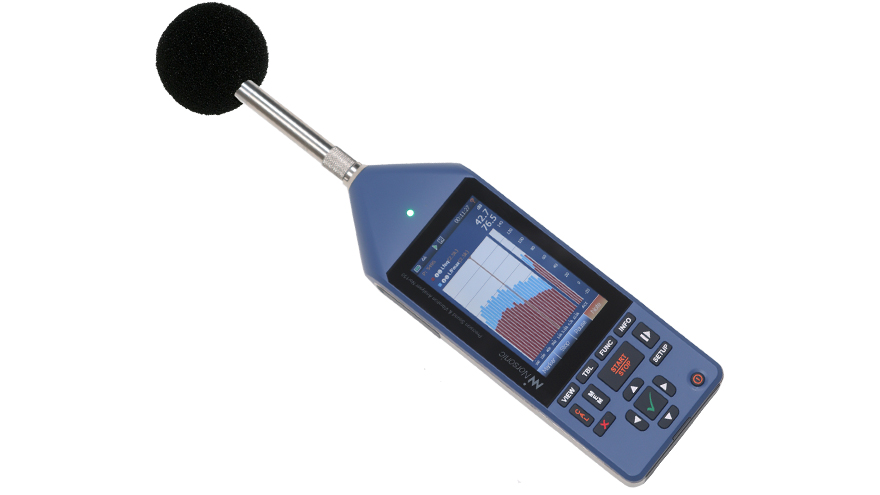

The Nor150 is the most advanced dual-channel Class I sound level meter available featuring environmental noise, building acoustics, vibration, and sound intensity measurement and analysis.
The Nor150 is the most advanced dual-channel Class I sound level meter available featuring environmental noise, building acoustics, vibration, and sound intensity measurement and analysis.
The Nor150 is a Class I sound level meter designed for a wide range of tasks ranging from basic noise measurements to advanced noise analysis, including room and building acoustics applications. Featuring dual measurement channels, the Nor150 is an ideal tool for sound intensity measurements when paired with the Nor1290 sound intensity probe. It also supports vibration measurements when paired with an IEPE vibration sensor. Featuring a 4.3″ full-color touchscreen, it offers a user-friendly experience similar to that of a smartphone.
The Nor150 can also be managed via NorCloud and the Nor850 software. The included NorConnect software with every unit enables users to download, view, and generate Excel reports of the measurements, or perform further analysis using Norsonic’s software suite of postprocessing and reporting tools for building acoustics, environmental noise, sound power, and sound intensity.
The Nor150 includes A, C and Z weighting networks with measurement of Leq, LeqI, LE – sound exposure level, SPL, Lmax, Lmin with parallel detection of Fast, Slow and Impulse time constants, statistical calculation of Ln, and TMAX5. The measurement data is analysed as global values in addition to two parallel time profiles with an adjustable resolution down to 5 ms. All interfaces and voice and text annotation are included. Input for second channel (Option 2), and a built-in web server is a standard feature.
Vibration measurements are made easy with the Nor150 using IEPE powered accelerometers. By enabling IEPE power, an accelerometer can be directly connected to the 7-pin preamplifier LEMO socket on each channel via a suitable cable, such as the Nor1438. The Nor150 can be set up to measure any combination of acoustic and vibration measurements using both measurement channels simultaneously.
Each Nor150 is delivered with the following:
The Nor150 Analyzer is built to be expandable and upgradable, providing users with a comprehensive measurement tool for years ahead. Each unit includes Norsonic’s 3-year warranty. Norsonic’s retrofit policy guarantees regular software updates with new features and options. The Nor150 offers a 60-day trial period where all options are enabled by the user if and when needed.
Available Kit Options:
Nor150 Advanced Level Environmental Option Kit
Includes options 3, 4,11, and 12.
Nor150 Building Acoustic Option Kit
Includes options 3, 7, 8, and 9.
Nor150 Consultant Option Kit
Includes options 3, 4, 7, 8, 11, 12, and 13.
Nor150 SI Option Kit
Includes Nor150 with options 2, 3, and 5, rechargeable battery pack, mains adaptor Nor345, 32GB micro SD card, USB cable Nor4525 and WiFi dongle Nor4614A. Nor1290 Probe kit Supplied with 1/2″ pre-polarised microphone pair with 1/4″ IEPE preamplifiers, misc. adapters, windscreen, light weighted handle with carbon fiber rod and mounting adapter for smart phone used as remote control unit, pelican case Nor1344 with additional space for Nor150, 2 meter cable Nor1410A and Nor1294 residual intensity verification coupler. The kit includes Nor850/Suite and Nor850/SI reporting software for sound intensity.
The internal camera is meant for documentation purpose before or after a measurement. The picture files are stored in the same project files as the measurement it belongs to.
Event triggered pictures requires an external IP camera or camera found on devices such as smart phones or pads. Pictures captures during a measurement is marked as events in the L/t graph and can be view in Nor150 or in NorReview
The GPS is used for position identification. Later software versions will also support exact time synchronisation. Time synchronisation is especially useful when several Nor150 units are used for capturing the same noise event, such as blast monitoring. The GPS position is stored as a part of the measurement file. It may also be set to be a part of the file name.
This option is not available as retrofit and must be ordered along with the instrument.

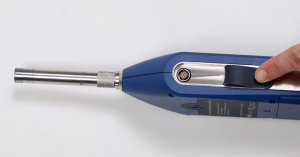

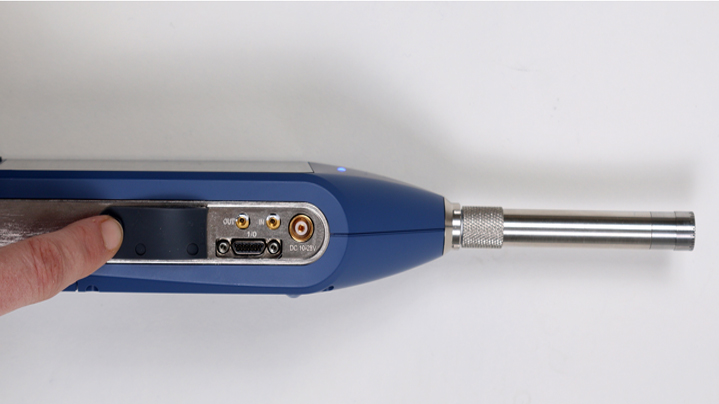

Input for the second channel is located on the left side of the instrument, well protected from dust and moisture by a rubber cover.
The second channel is a standard 7-pin Lemo connector with the same specifications as the main channel. It supports both standard 7-pin Lemo preamplifiers as well as IEPE preamplifiers and accelerometers. Also included is SysCheck signal for check of outdoor microphones like the Nor1216 and Nor1217. Second channel is a standard feature included with the base meter.
1/1 and 1/3 octave filters (0,4 – 20 kHz in 1/3 octave band) including multi-specter functionality in time profile A.
A 3 order analogue high pass filter with a -3 dB point at 3 Hz may be selected to avoid overloading the input circuitry from low frequency noise.

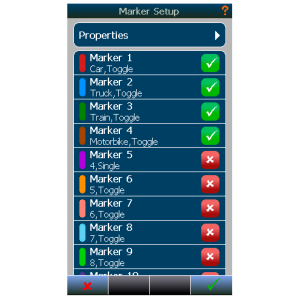

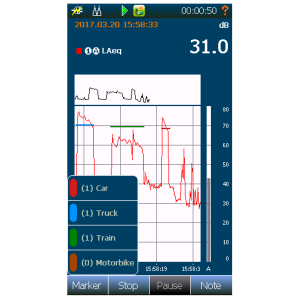

This option extension adds audio recording and marker management to the Nor150. The Nor150 is the third generation of sound analyser from Norsonic that is fitted with audio recording. We were the first company that added audio recording into a Sound Level Meter. With the introduction of Nor150, the audio recording is further refined with the possibility to also replay the recording on the meter itself without any need of transferring the data to a PC. The option 4 adds a sophisticated but easy to use marker management indispensable for every environmental noise assessment tasks. The user can select up to ten makers, add names, colour and associates the marker to an action. The marker can either be a single or a toggle marker. The action can be; enable a reference tone, start a recording, take a picture or set one of the digital outputs found on the 15pin socket. It is easy to add markers on an ongoing measurement. Voice and text notes may in the same way as markers be added to an ongoing measurement. The markers can be moved or deleted. Markers may also be added after a measurement is elapsed.
The Nor 150 also offers six system markers that are automatically inserted in the Level versus time profile. These are; Measurement Pause marker, Measurement continue marker, Audio recording marker, Picture marker, Signal overload marker, Battery low marker, Event trigger marker.
The Nor150 is seamless integrated to the PC program NorReview (Nor1026) to further evaluate and calculate the noise data and to create customized reports.
Sound intensity is a powerful measurement method in situations where traditional methods prove difficult or not feasible. With the new features of the Nor150, sound intensity measurements are significantly easier to accomplish than ever before, and may actually be less time-consuming than
corresponding sound pressure methods.
Nor150 equipped with the sound intensity option and the Nor1290 probe kit is a powerful tool for all types of sound intensity measurements, from high-precision laboratory conditions to demanding and rough field use.
Thanks to the unique phase correction algorithm, only a 12 mm spacer is necessary to cover the entire frequency range from 25 Hz to 10 kHz. This significantly reduces the time spent in-situ, and allows measurements of highly reactive sound fields.
Sound intensity is especially suitable for sound power measurements of non-movable machinery in industrial environments, measurements of driven machinery, industrial plant exhausts and pipes both indoors and outdoors.
In-situ building acoustics may benefit from the intensity technique, both for transmission loss and sound leakage detection. And for research & development applications, sound intensity provides powerful noise map visualisation.
Signal generator with sine, white, pink, band passed filtered noise.

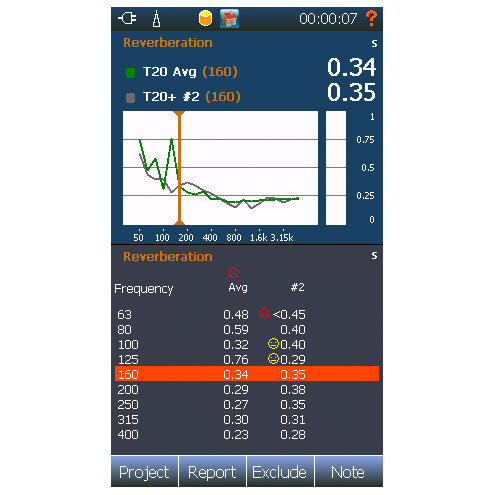

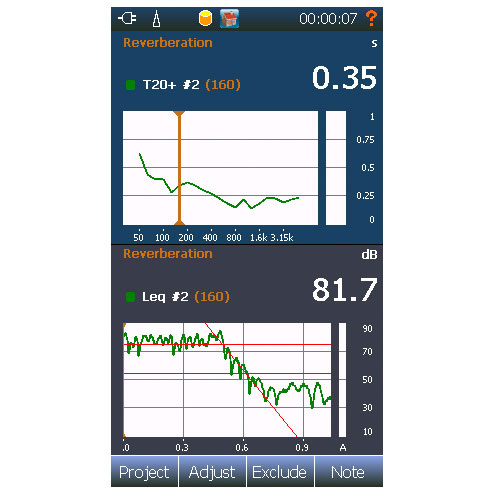

Reverberation Time decay and calculation of T20 and T30 based on impulse or noise excitation. Requires option 3. Requires also option 7 if RT shall be based on noise excitation.

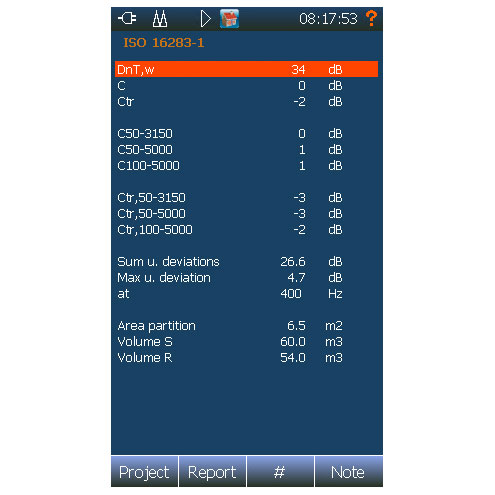

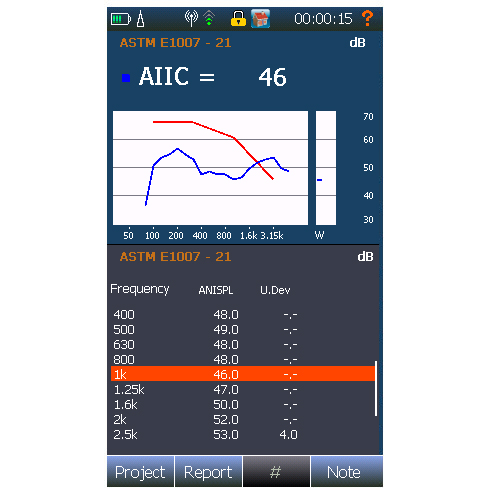

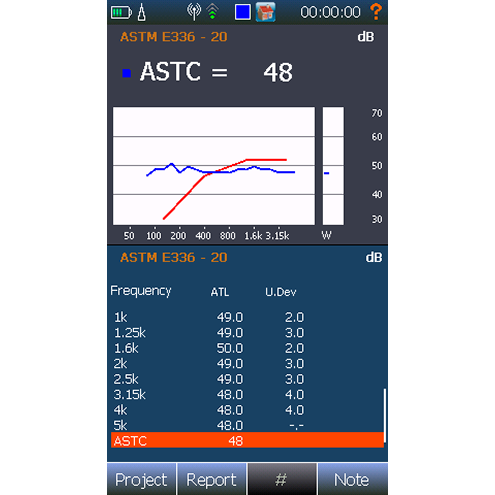

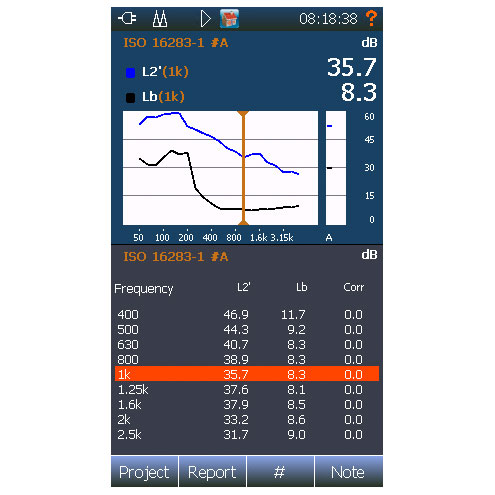

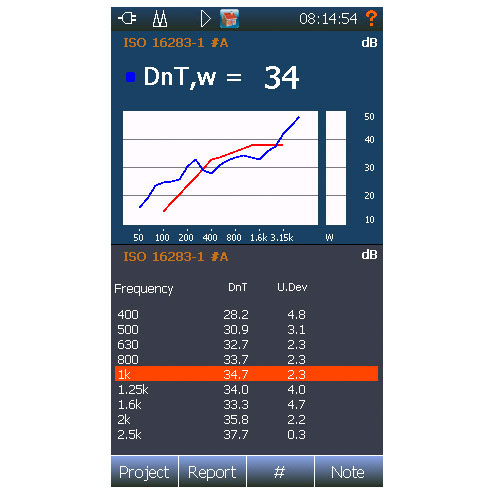

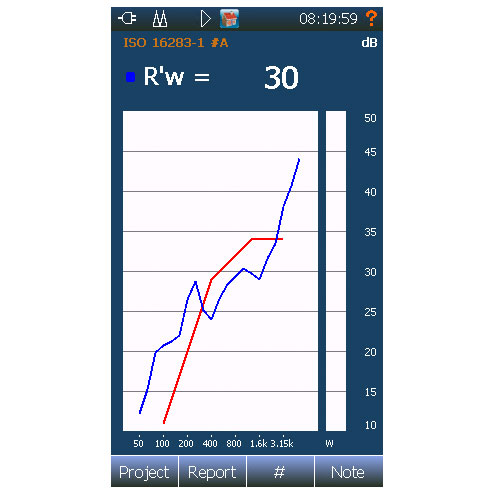

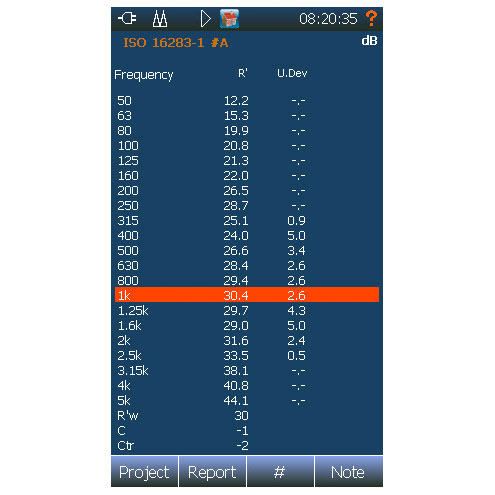

Complete Building Acoustic mode with onboard rating calculations according to all type of building acoustics standards, including ASTM E336, ASTM E1007, ASTM E989, ASTM 413 and ISO 16283. With additional background level measurement results, the Nor150 offers an on-board calculation of the final airborne sound insulation ratings such as ASTC, NIC, DnT, Rw and others. Similar possibility is available for impact sound insulation ratings Ln,w or AIIC.
Enhanced noise assessment package including internal web server for remote control via smartphones, pads and PC and additional four triggers for independent setting of different trigger levels during a day. Requires option 4.
With this option you are able to connect the instrument to Norsonic’s cloud service; NorCloud.
NorCloud is a Norsonic system to collect, display and process sound level data.
When used together with Nor150 sound analyser, you can measure, analyse and report directly from your web browser.
Create projects, assign sound level meters to projects and configure settings such as audio recording, SMS/e-mail alarms and automatic reporting.
Norsonic stores your data safely and conveniently, but you are of course free to download your measurements.

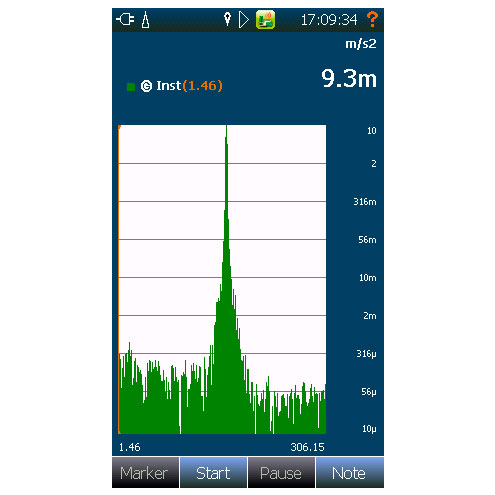

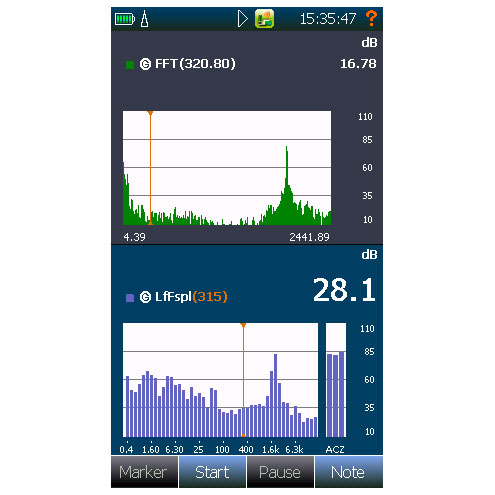

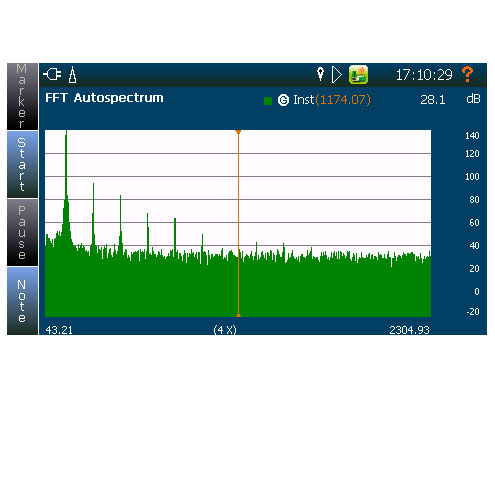

FFT sampling rate is 48 kHz with more than 16000 lines. Upper frequency is 22 kHz. Dynamic zoom from 1 – 64. The FFT calculation and 1/3 octave spectrum works in parallel.
Due to the limitation in the frequency range of a standard ½” microphone, a ¼” microphone capable of measuring ultrasound is required for best use of this option. Please contact us for further information or recommendations.
Full remote programming support for environmental measurement features of the Nor150. This is an ideal tool for system integrators requiring a sound level meter as a frontend to their application. This option includes support for Nosie Compass and a Weather station. The use of the API option requires a purchase of Nor1056, DLA – Developer License Agreement. This grants 8 hours of free support with direct access to the Norsonic’s API developer team.

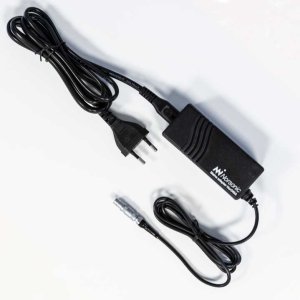

Mains adaptor 100 – 240 Vac 50-60Hz, 12Vdc 1,2 A.
Supplied with Mains plug for destination country.
Extra Rechargeable Battery Pack for the Nor150

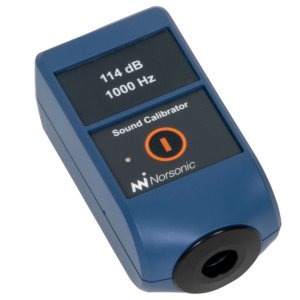

Nor1255 is a small battery-operated precision class 1 microphone calibrator generating 114 dB @ 1k Hz conforming to IEC 60942 and ANSI S1.40.

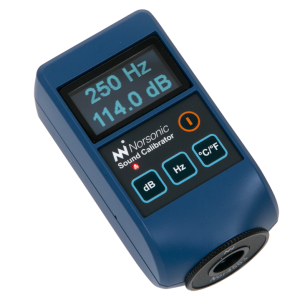

Nor1256 is a small battery-operated precision class 1 microphone calibrator conforming to IEC 60942 and ANSI S1.40.
The combination of two different levels and two different frequencies allow both level linearity and frequency linearity to be verified. In addition the sound calibrator measures the environmental conditions; air pressure, temperature and humidity.

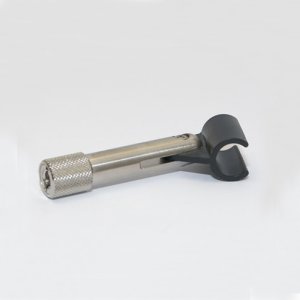

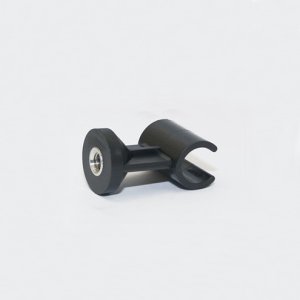

Nor1261 is a “clip-on” tripod adaptor for use with 1/2″ Preamplifiers. Tripod attachment threads is 1/4″.
“Clip-on” adjustable Tripod Adaptor for 1/2″ Preamplifiers. Both 3/8″ and 1/4″ tripod screws can be used.

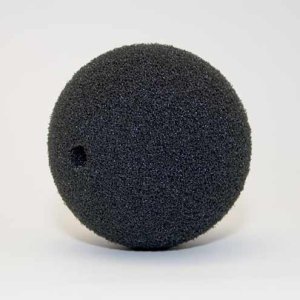

Wind Shield for 1/2″ microphones/preamplifiers. Diameter 90mm.
Wind Shield for 1/2″ microphones/preamplifiers. Diameter 60mm.

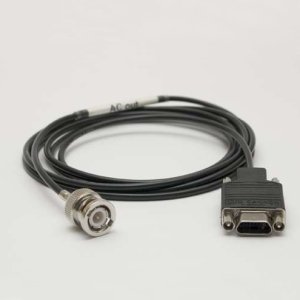

Cable (2m) for connecting the AC output of Nor145 to external equipment such as power amplifiers etc.
Please note that the Nor4514 is replaced by Nor4514A. The A version is needed for use with Nor145.

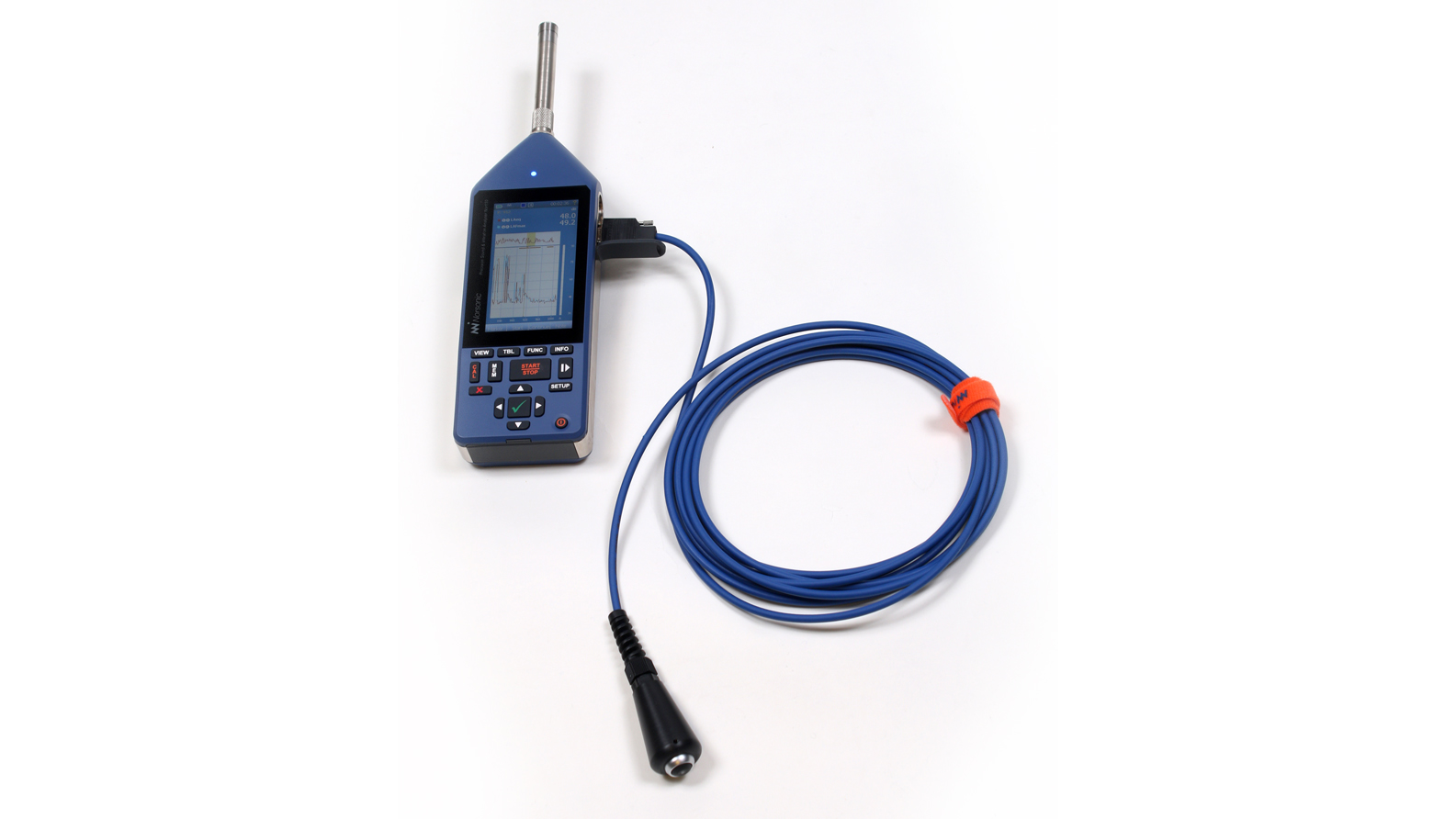

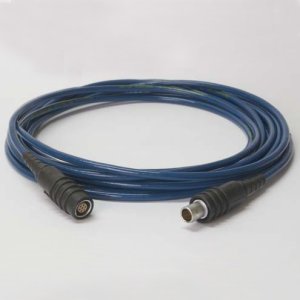

Preamplifier extension cable Nor1408A comes with Lemo connectors to fit directly in the measurement chain. The contact pins are gold plated and the connector housing is protected with a special rubber sleeve. This protects the connectors in use from moisture, dirt and bumps. The Nor1408A replaces the Nor1408. The A version is similar to the 1408 but has in addition added threads on the outer shell of the female connector to fix the lock ring on a Nor1206 and Nor1209 preamplifier. The cable is a general purpose cable suited for all preamplifiers following the Lemo 1B standard developed by Norsonic, such as Nor1201, Nor1203, Nor1204, Nor1206 and Nor1209 as well as preamplifiers of other brands.
Standard lengths are 5, 10, 20, 30 and 50 meters. Special lengths on request. The /xx in the order code denotes the length of the cable.

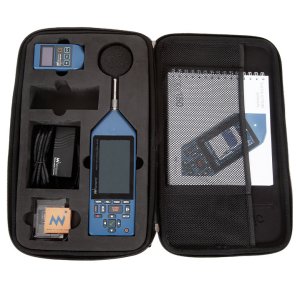

Softbag in nylon with room for Sound Analyser Nor150, calibrator, and accessories. The bag is normally included in Nor150 deliveries.
This cable is designed for fixed installations in test chambers. It has the same pinout as a standard Nor1408 cable.

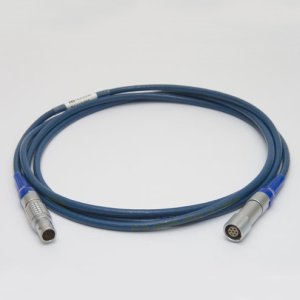

Preamplifier cable Nor1410A comes with Lemo connectors to fit directly in the measurement chain. It features high quality connectors with gold plated contact pins. The Nor1410A replaces the Nor1410. The A version is similar to the 1410 but has in addition added threads on the outer shell of the female connector to fix the lock ring on a Nor1206 or Nor1209 preamplifier. The cable is a general purpose cable suited for all preamplifiers following the Lemo 1B standard developed by Norsonic, such as Nor1201, Nor1203, Nor1204, Nor1206 and Nor1209 as well as preamplifiers of other brands.
Standard length is 2 meter. For special length see Nor1408A.

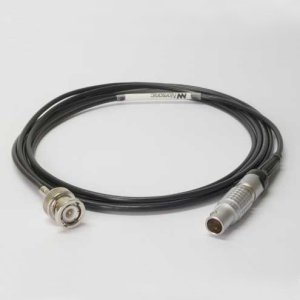

Nor1438 is a BNC to Lemo cable.
Having a length of 2 meters, this cable is a 3 mm thin and flexible cable with BNC connector in one end and a Lemo male in the other end. For connection of an electrical signal to a measuring instrument using Norsonic Lemo system.

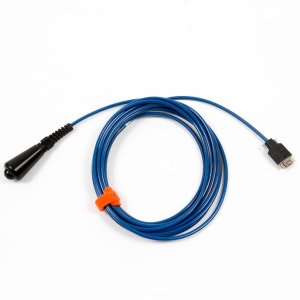

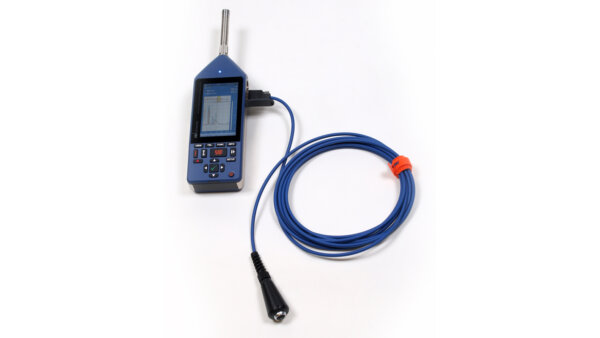

Remote hand switch with 5m cable for external triggering of start or audio recording (if applicable) on Nor145.

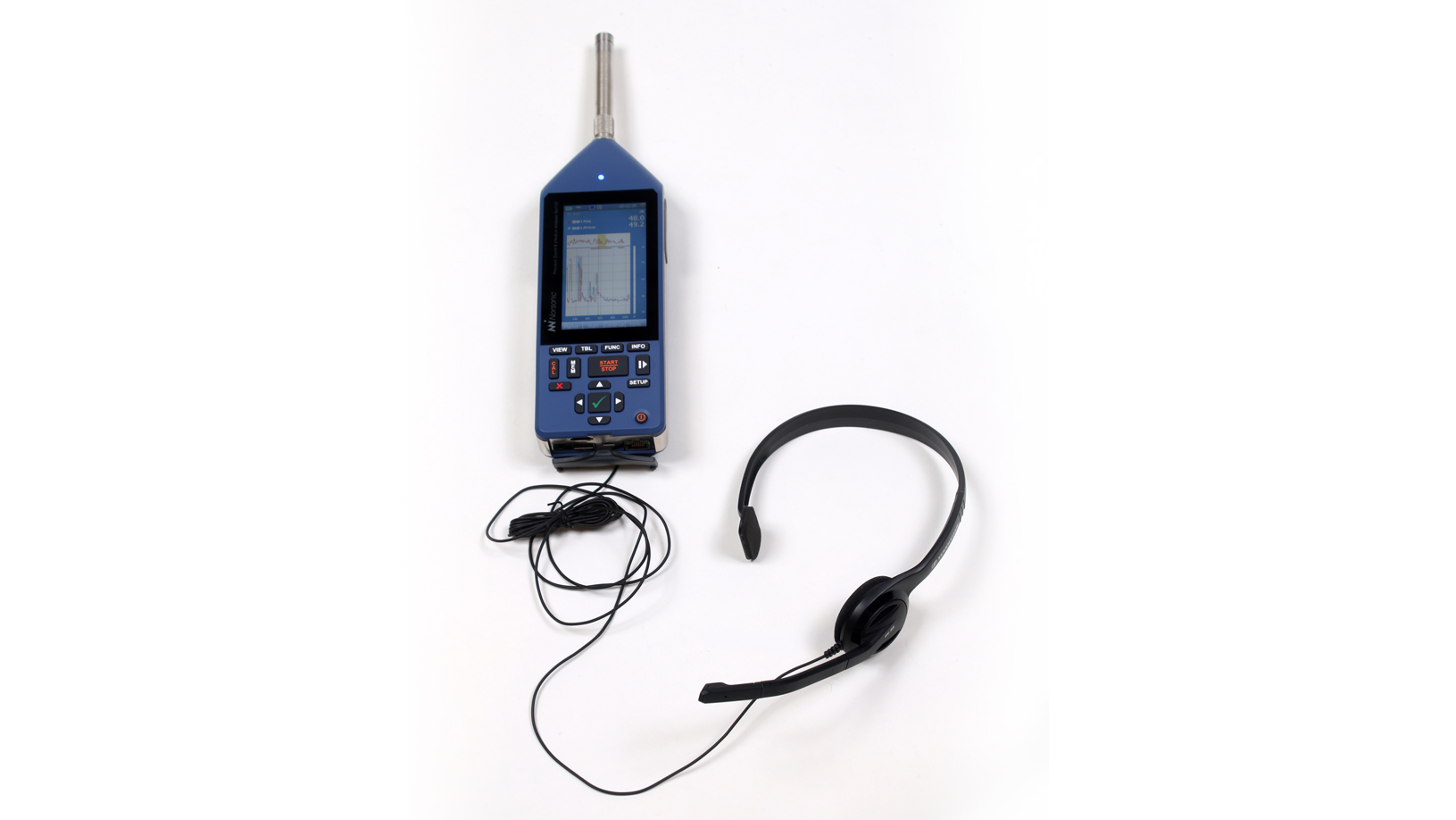

Headset with Comment Microphone for use with Nor150
WLAN Dongle for Nor150
The Nor150 is supplied with the ½” preamplifier Nor1209 and the ½” measurement microphone Nor1225. It conforms to the latest revision of the following National and International standards including amendments, all type 1 / class 1; IEC 61672, IEC 60651, IEC 60804, IEC 61260, DIN 45657, ANSI S1.4, ANSI S1.11, and ANSI S1.43.
Simultaneous measurement of SPL, Leq, LeqI, LMax, LMin, LE, LEI, LPeak, Ln and Tmax5.
Time weighting functions: Fast, Slow and Impulse (Simultaneous).
Spectral weighting functions: A, C and Z – weighting (Simultaneous).

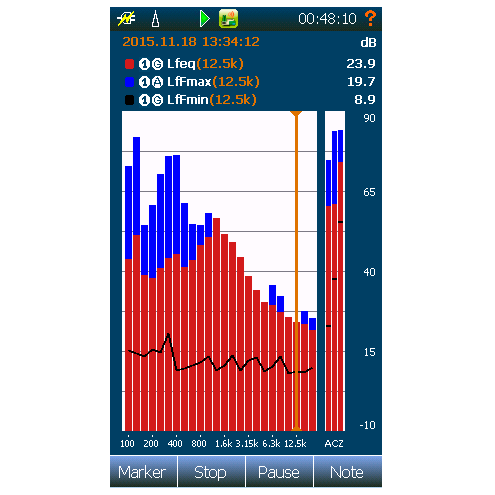

Frequency analysis: 1/1 and 1/3 octave band real time filters from 0.4 Hz to 20 kHz.

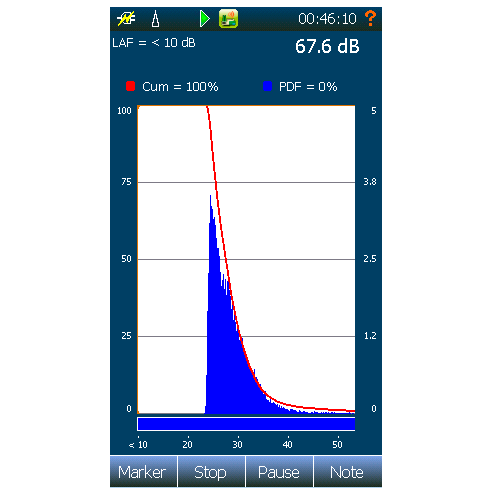

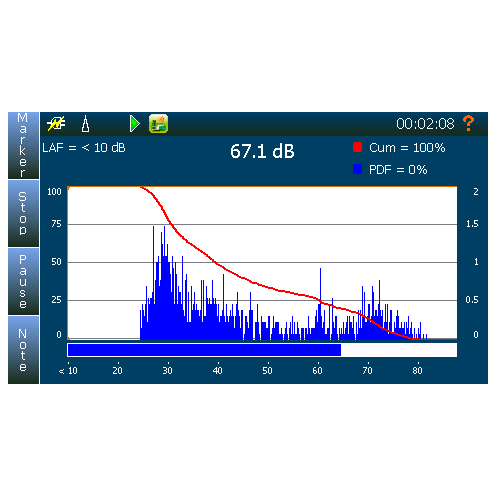

Statistical calculations: 8 individual adjustable percentiles from L0.1% to L99.9%. The statistical calculations are performed in real time within each frequency band and for each profile period if period length is set longer than 2 minutes. Class width is 0.2 dB. Dynamic range is 130 dB.
Vibration: acceleration (m/s2 ), velocity (m/s), or displacement (m)
Overall measurement duration: 1 sec – 7 days. (If set to Repeat or Synchro mode a new measurement will be started automatically, with no time gap between each measurement.).
Time profile A resolution: 5 ms – 24 hours including full frequency spectra. From 1 sec if profile B or Moving is enabled.
Time profile B and Moving resolution: 1s – 24 hours. A, C and Z –
no frequency spectra.
Back erase in Pause mode: 0-20 sec free selectable graphical back erase.
12 and 48 kHz sampling rate
8 , 16 and 24 bits
0-120 second pre-trigger
One range covering 120dB without any range adjustments.
Self noise measured with 1/2” microphone with a nominal sensitivity of 50mv/Pa: 17 dBA.
Maximum RMS level 137 dBA, Maximum Peak level 140 dB PeakC.
The high SPL mode enables measurements up to 194 dB using a suitable 1/4” microphone.
Built in noise generator with Sine, White, Pink and 1/1 and 1/3 octave band passed filtered noise and Impulse noise.
Full on-board support for ISO 9614-2 with intuitive warning indicators and measurement based suggestions for improvements. Fulfils IEC 61043 class 1 requirements.
Dynamic capability Nor150 combined with Nor1290 Sound Intensity Probe with 12mm spacer; >18 dB (125 Hz -10 kHz), >13 dB (f ≥40 Hz)
Parallel calculation of T15, T20 and T30 in addition to Tmax for Noise excitation and EDT for impulse excitation.
Sampling rate: 48 kHz.
Frequency resolution: 1.46 Hz or 2.92 Hz (FFT size 8192 or 16384 lines).
Upper frequency: 22kHz
Functions: Auto spectrum, linear averaging.
Acquisition rate: ~700 ms – no overlap.
Display: Dynamic display zoom 1 – to 64 in power-of-two steps.
Time windowing: Hanning
4.3” color display capacitive touch screen.
Protected by an anti-smudge coated and scratch-proof glass.
Built in GPS.
Built in Camera for annotation before and after a measurement. Support for use of external IP or device cameras for event triggered pictures during a measurement. The event captured pictures are automatically timestamped, transferred to Nor150 and are bundled with the measurement.
Storage modes: Manual, Auto, Repeat and Synchro. Synchro synchronize the start of the next measurement to the next full hour.
Internal memory: 350 MB – not used for measurement storage.
Micro SD card: Supports XC and HC standard. No limitation in maximum SD card size.
Data Transfer: SD card to PC, LAN and USB using NorConnect software.
Microphone input: Two microphone inputs (Second channel optional). Supports standard 7 pin lemo preamplifiers including SysCheck, Microphone heating, TEDS and IEPE. Polarization voltage: 0, 70 and 200V. Preamplifier voltage is ± 15V. Both channels are connected to the main microphone input in Sound Intensity mode. Channel 2 is multiplexed and replaces the SysCheck feature.
Comment microphone: Via 3 pin mini jack.
AC out, 100mV full scale on 15 pin I/O socket.
3 pin mini jack headphone socket for replay of voice notes, listen to microphone AC signal or replay of audio recordings. Comment microphone for voice notes is connected to same plug.
Signal generator on 15 pin I/O socket with Pink, White, Band-pass filtered, sine and impulse noise.
Rechargeable 3,5Ah Li-Ion batteries with fuel gauge.
External power 10-28Vdc 3-5Watt.
Typical battery lifetime: 8 hours.
Dimensions (ex. preamplifier and microphone LxWxH): 240 x 82 x 39mm.
Weight (including preamplifier and microphone): 700g.
Vibration measurements are made easy with the Nor150 using IEPE powered accelerometers. By enabling IEPE power, an accelerometer can be directly connected to the 7 pin preamplifier LEMO socket via a suitable cable, such as the Nor1438. The Nor150 can perform analysis in either dB or real units, such as mm/s².
The Nor150 is designed to be the preferred tool for all types of environmental noise measurements. Up to 60 measurement parameters may be logged simultaneously including, A, C and Z frequency weightings, 1/1 & 1/3 octave bands, Leq, LeqI (Impulse Leq), LE (sound exposure level), SPL, Lmax, Lmin, Moving Leq, all along with parallel detection of Fast, Slow and Impulse time constants, 8 statistical calculation of percentile levels Ln, and TMAX5.
Global measurement duration can be defined from 1 sec – 7 days (if set to Repeat or Synchro mode a new measurement will be started automatically, with no time gap between each measurement.) Two parallel time profiles may be defined with an adjustable resolution down to 5 ms. The advanced trigger system enables different trigger levels for day, evening, or night with event triggers to collect markers, audio recordings, and pictures (using an IP camera).
The NorConnect software is included with every unit, enabling users to download, view, and generate Excel reports of the measurements, or perform further analysis using Norsonic’s software suite of postprocessing and reporting tools for building acoustics, environmental noise, and sound power.
Nor150 is optimized for use with Norsonic NorCloud, Norsonics’ cloud service for noise measurement, control, and reporting, all easily connected over the internal LAN, using WLAN with WiFi dongle Nor4614A, or using an extern modem.
Features

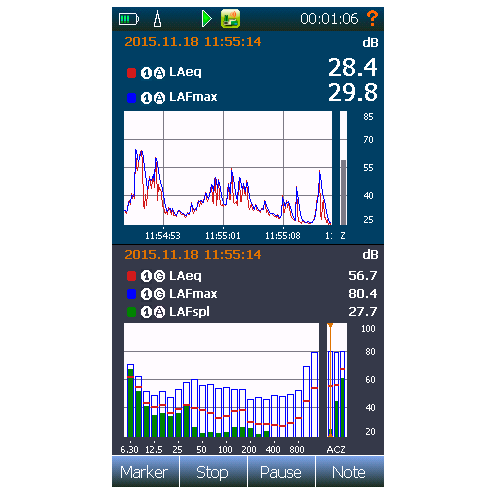

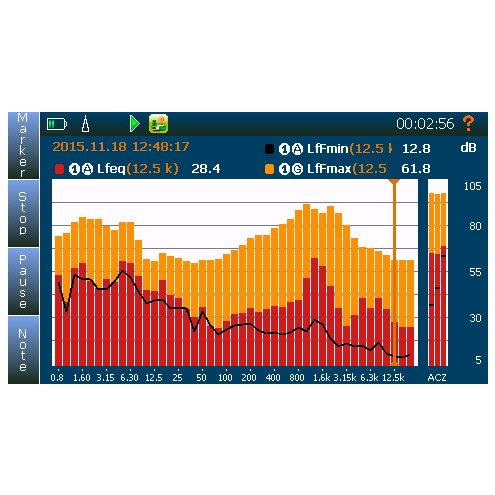

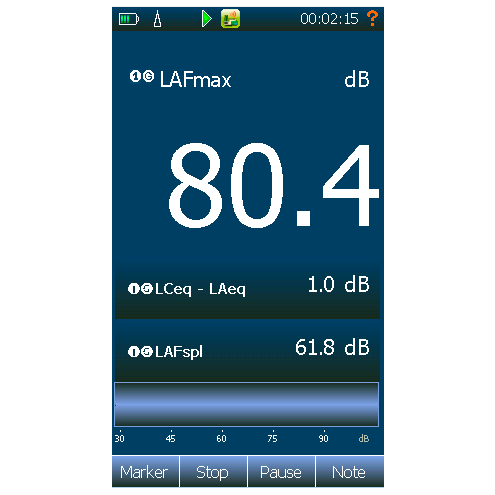

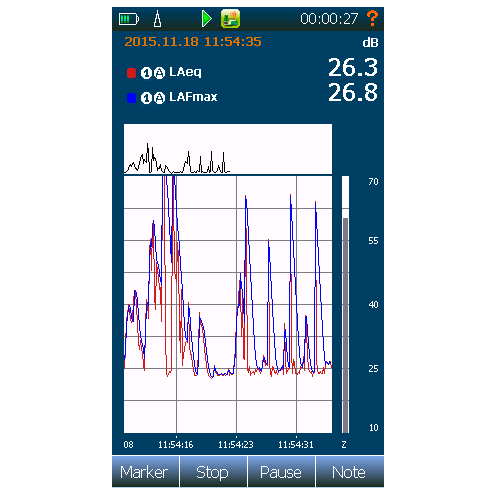

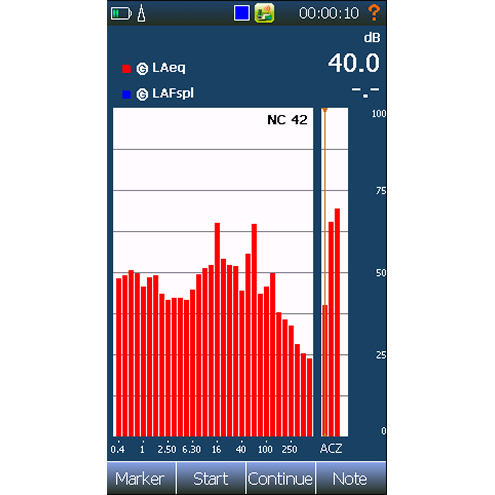

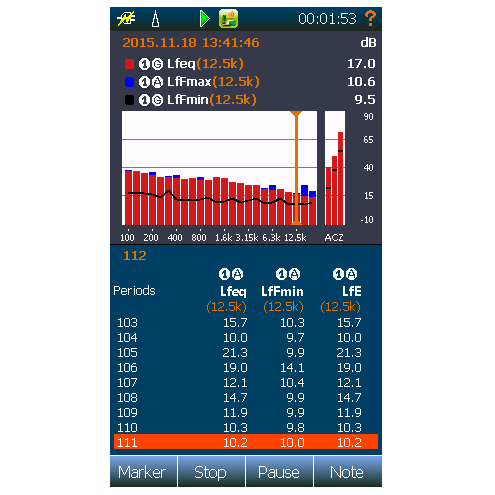

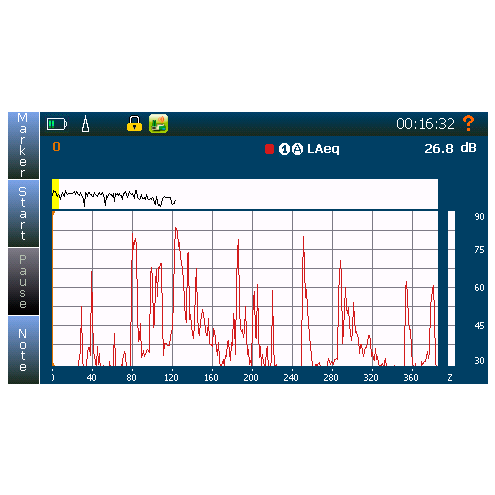

General analyzer (environmental) mode has a selection of different display views: portrait and landscape. All portrait views can either be a single or dual type frame.

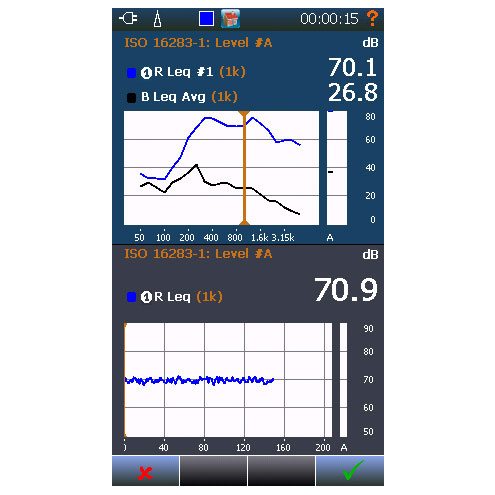

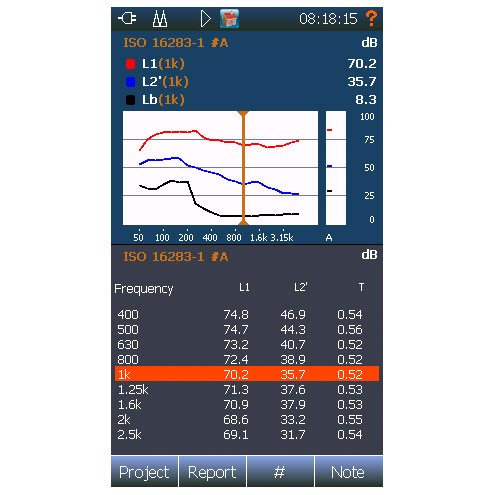

Norsonic is known for its long-time tradition of creating state-of-the-art building acoustic analyzers. The Nor150 sound level meter is no exception!
The Nor150 can be used as a stand-alone single or dual-channel building acoustic analyzer or as a remotely controlled building acoustic frontend for the advanced Nor850 multichannel software.
The Nor150 offers a built-in signal generator for excitation of the source room level measurements or for excitation of the reverberation time measurements. The results are measured in accordance with all types of building acoustics standards, including ASTM E336, ASTM E1007, ASTM E989, ASTM 413, and ISO 16283. With additional background level measurement results, the Nor150 offers an on-board calculation of the final airborne sound insulation ratings such as the ASTC (Apparent Sound Transmission Class), NIC, DnT, Rw, and others. A similar possibility is available for impact sound insulation ratings Ln,w or AIIC (Apparent Impact Insulation Clas) using a tapping machine such as the Nor277.
The Nor150 analyzer seamlessly integrates with the Nor850 software, either as a remote frontend to the Nor850 Measurement System, or for easy post-processing in the Nor850 Reporting System.
Features

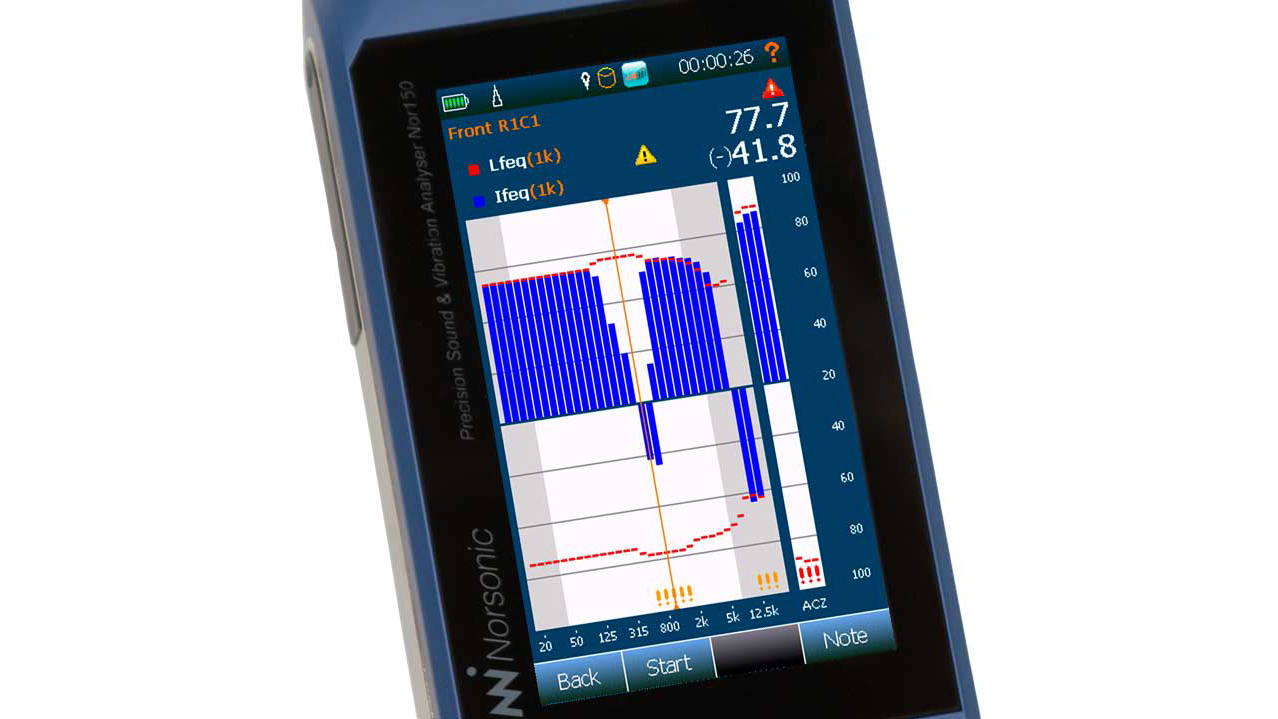

The Nor150 fitted with sound intensity option and the sound intensity probe kit Nor1290 is a powerful tool for all types of sound intensity measurements. It is designed for easy use in all types of measurement conditions.
The remote control handle using a Smartphone as a measurement control and displaying device forms a lightweight and easy-to-use system, allowing the user to perform all measurements with a single hand operation. The Smartphone communicates via WiFi with the internal web server operating in Nor150. The system may also be used with the sound intensity probe directly attached to the Nor150.
Applications
Features
The most advanced dual-channel analyzer available!
The Nor150 is the most advanced dual-channel Class I sound level meter available featuring environmental noise, building acoustics, vibration, and sound intensity measurement and analysis.
