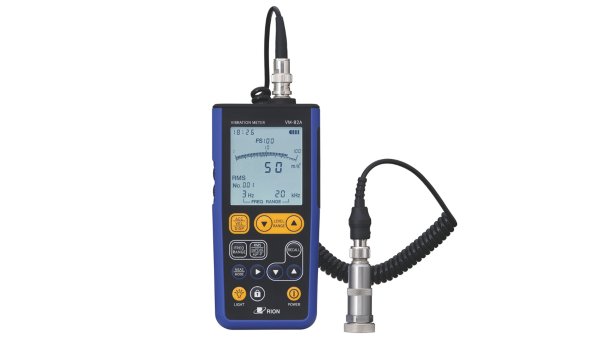

The VM-82A is a versatile vibration meter designed for industrial machinery maintenance. It offers acceleration, velocity, and displacement measurement modes with ample data storage capability.
The VM-82A is a versatile vibration meter designed for industrial machinery maintenance. It offers acceleration, velocity, and displacement measurement modes with ample data storage capability.
The VM-82A offers three measurement modes: acceleration, velocity, and displacement, with internal memory capable of storing 1000 data points. It comes with a PV-57I accelerometer, enabling measurements across a broad range of sensitivities and frequencies. Additional accelerometers can be used as needed.
Each VM-82A includes:
The VE-10 is a portable vibration exciter designed for field calibration of vibration systems. The VE-10 generates a sinusoidal vibration of 10 m/s2 (rms) in acceleration, 10 mm/s (rms) in velocity, 10 μm (rms) in displacement.
Piezoelectric accelerometer with 5.1 mV/(m/s2) sensitivity. Standard accessory included with VM82-A.
Accelerometer mounting magnet with M6 stud. Standard accessory included with VM-82A.
Curl cable (50 to 100 cm) for use with BNC connection sensors. Standard accessory included with VM-82A.
Input: 100 to 240 V AC, 50/60 Hz, Output: 12 V DC
AC or DC output cable. BNC output
The VM-82A is a versatile vibration meter designed for industrial machinery maintenance. It offers acceleration, velocity, and displacement measurement modes with ample data storage capability.
Note: One (1) PV-57I Piezoelectric Accelerometer, one (1) VP-53S Magnet Attachment, and one (1) VP-51KI Curled Accelerometer Cable come included with the VM-82A.
 This item: Rion VM-82A General Purpose Vibration Meter |
|
 Rion CC-24 BNC Pin Output Cable |
|
| Rion NC-98E Power Adaptor |
|
| Rion PV-57I Piezoelectric Accelerometer |
|
| Rion VP-51KI Curled Accelerometer Cable |
|
| Rion VP-53S Magnet Attachment |
|
| Total for selected item(s) | $4,845.00 |
